Information Display*

Models without ambient meter

The information display shows the odometer, trip meter, and other gauges.

Switching the Display

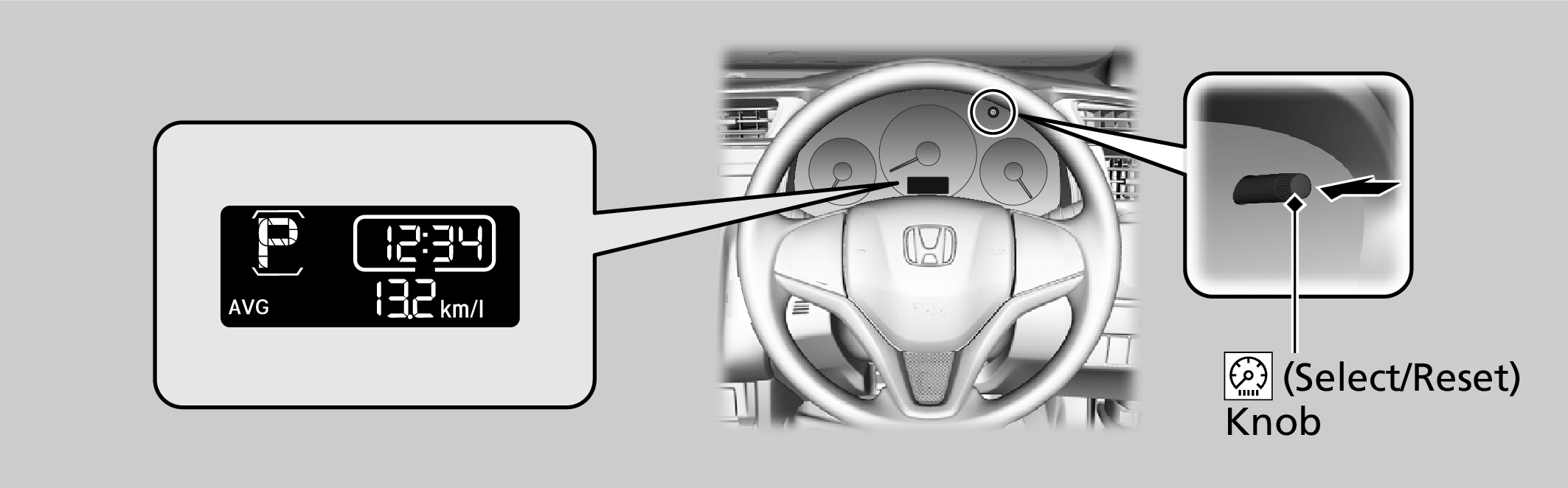

Press the (Select/Reset) Knob to change the display.

Detail

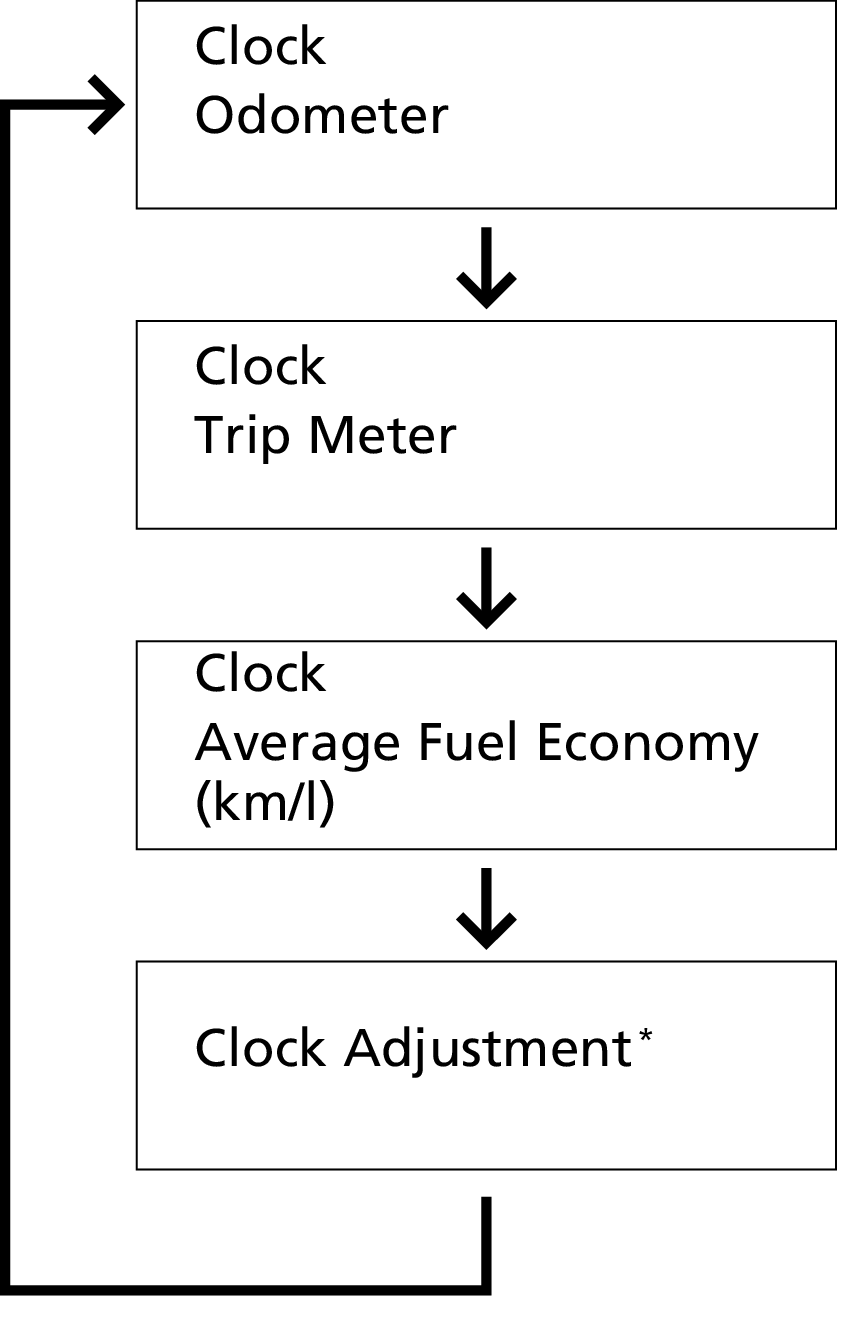

Each time you press the knob, the information display changes as follows:

Honda Jazz Owners Manual



Models without audio system
Models with audio system

Odometer

Shows the total number of kilometres that your vehicle has accumulated.

Trip Meter

Shows the total number of kilometres driven since the last reset.

Resetting a trip meter

To reset a trip meter, display it, then press and hold the knob. The trip meter is reset to 0.0.

Average Fuel Economy

Shows the estimated average fuel economy of the trip meter in km/l. The display is updated at set intervals. When a trip meter is reset, the average fuel economy is also reset.

Models with ambient meter

The information display shows the fuel gauge, odometer, trip meter, and other gauges.

Switching the Display

Press the (Select/Reset) Knob to change the display.

Detail

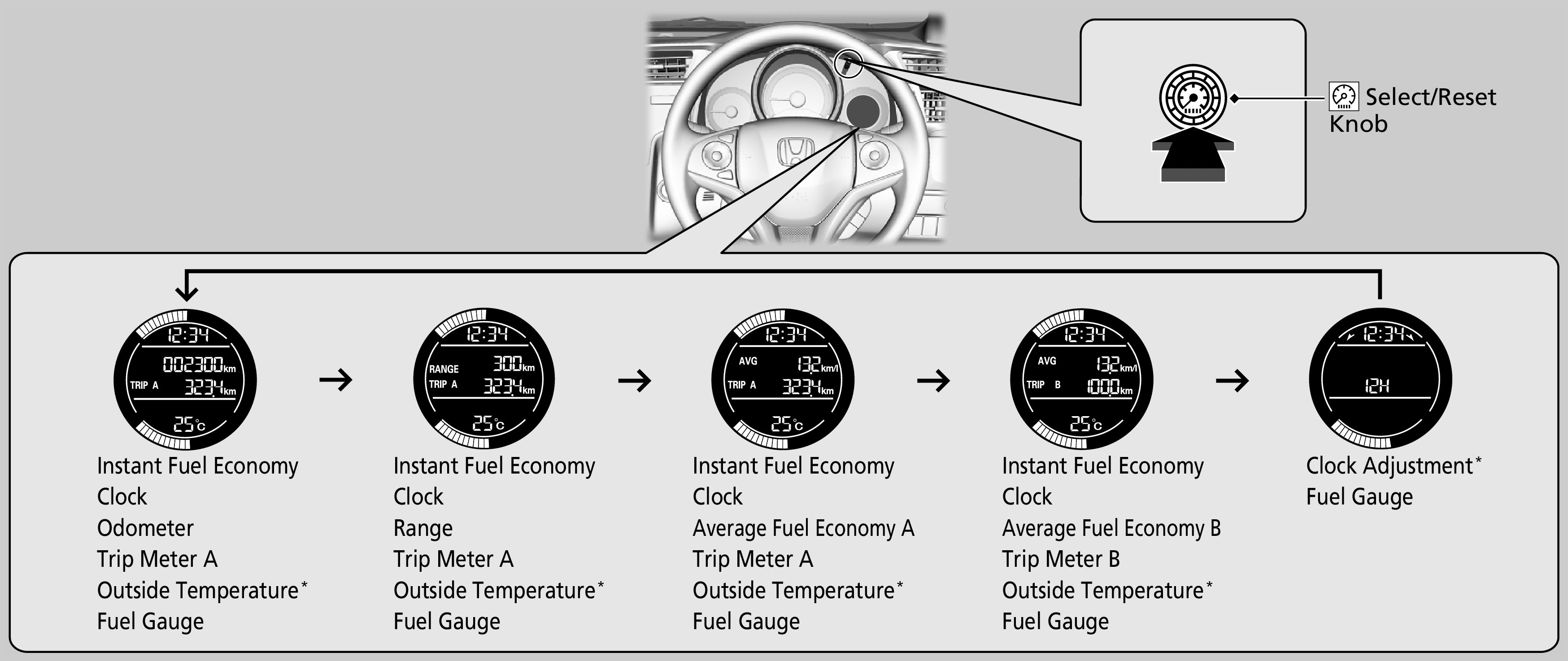

Each time you press the knob, the information display changes as follows:
Models without audio system
Models with monochrome audio system

Models with display audio system
Some of the items on the information display also appear on the audio/information screen. They also change along with the information display changes while the fuel consumption is shown.

Instant Fuel Economy

Shows the instant fuel economy as a bar graph in km/l.

Odometer

Shows the total number of kilometres that your vehicle has accumulated.

Trip Meter

Shows the total number of kilometres driven since the last reset. Trip A and B can be used to measure two separate trips.

Detail
Switch between trip A and B by pressing the knob.

Resetting a trip meter

To reset a trip meter, display it, then press and hold the knob. The trip meter is reset to 0.0.

Range

Shows the estimated distance you can travel on the remaining fuel. This distance is estimated from the fuel economy of your previous trips.

Average Fuel Economy

Shows the estimated average fuel economy of each trip meter in km/l. The display is updated at set intervals. When a trip meter is reset, the average fuel economy is also reset.

Outside Temperature*

Shows the outside temperature in Celsius.

If the outside temperature has been below 3°C at the time you turn the ignition switch to ON II*1, the outside temperature indicator blinks for ten seconds.

Detail
The temperature sensor is in the front bumper.
Road heat and exhaust from another vehicle can affect the temperature reading when your vehicle speed is less than 30 km/h.

It may take several minutes for the display to be updated after the temperature reading has stabilized.

Adjusting the outside temperature indicator

Adjust the temperature reading up to ± 3°C if the temperature reading seems incorrect.

  1. Turn the ignition switch to ON II*1.
  2. Press and hold the (Select/Reset) knob for 10 seconds or more while the outside temperature is shown on the information display.
    • The information display goes into temperature adjustment mode. The display starts showing from -3°C to +3°C.
  3. Release the knob when the right adjustment amount is shown.
    • The adjustment is complete.

Fuel Gauge

Displays the amount of fuel left in the fuel tank.

*1 : Models with the keyless access system have an ENGINE START/STOP button instead of an ignition switch.

Detail

NOTICE
You should refuel when the reading approaches E.
Running out of fuel can cause the engine to misfire, damaging the catalytic converter.

The actual amount of remaining fuel may differ from the fuel gauge reading.

* Not available on all models
