Indicators

• Comes on for a few seconds when you turn the ignition switch to ON II^*1, then goes off if the parking brake has been released.
• Comes on when the parking brake is applied, and goes off when it is released.

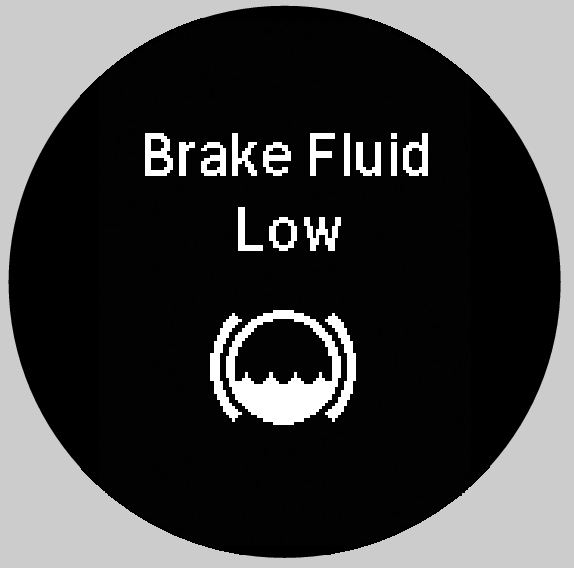

• Comes on when the brake fluid level is low.
• Comes on if there is a problem with the brake system.

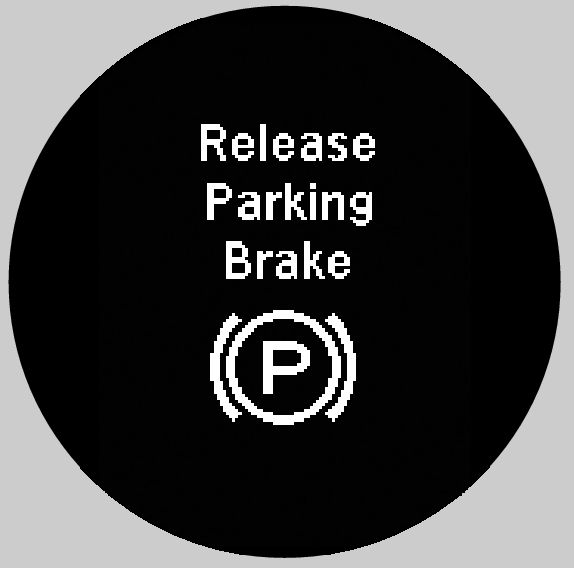

• The beeper sounds and the indicator comes on if you drive with the parking brake not fully released.

• Comes on while driving
  - Make sure the parking brake is released. Check the brake fluid level.


  What to do when the indicator comes on while driving

• Comes on along with the ABS indicator
  * - Have your vehicle checked by a dealer.

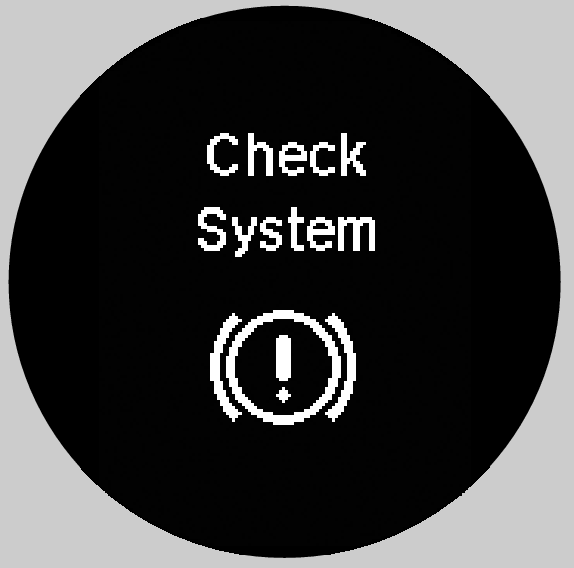

  If the Brake System Indicator (Red) Comes On

• Comes on for a few seconds when you turn the ignition switch to ON II^*1, then goes off.
• Comes on if there is a problem with a system related to braking other than the conventional brake system.

• Stays on constantly
  - Have your vehicle checked by a dealer.

• Comes on when you turn the ignition switch to ON II^*1, and goes off when the engine starts.

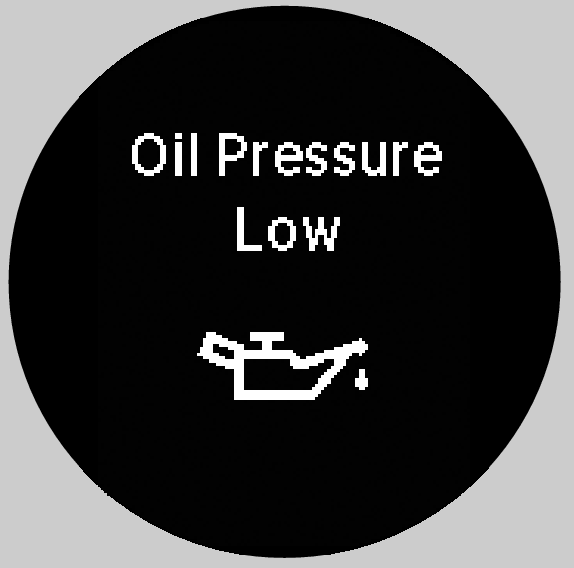

• Comes on when the engine oil pressure is low.

• Comes on while driving
  - Immediately stop in a safe place.


  If the Low Oil Pressure Indicator Comes On

  Diesel models


  Starting the Engine

• Comes on when you turn the ignition switch to ON II^*1, and goes off either when the engine starts or after several seconds if the vehicle did not start.
• Comes on if there is a problem with the emissions control systems.
• Blinks when a misfire in the engine's cylinders is detected.

• Comes on while driving
  - Have your vehicle checked by a dealer.
• Blinks while driving
  - Stop in a safe place where there are no flammable objects. Stop the engine for 10 minutes or more, and wait for it to cool down. Then, take your vehicle to a dealer.

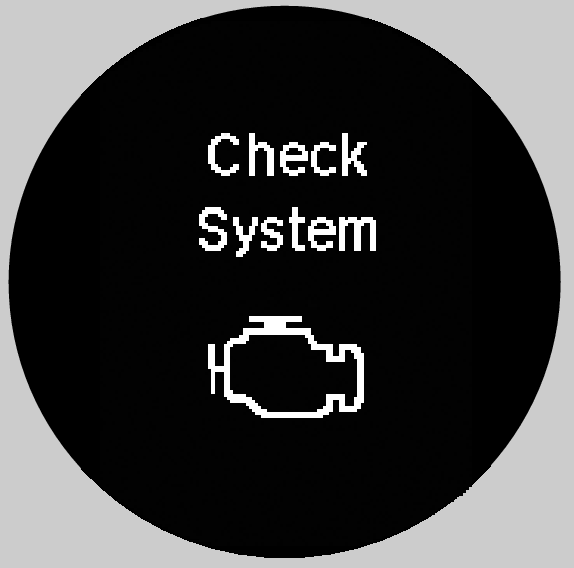

  If the Malfunction Indicator Lamp Comes On or Blinks

• Comes on when you turn the ignition switch to ON II^*1, and goes off when the engine starts.
• Comes on when the battery is not charging.

• Comes on while driving
  - Turn off the heating and cooling system*/climate control system* and rear demister in order to reduce electricity consumption.

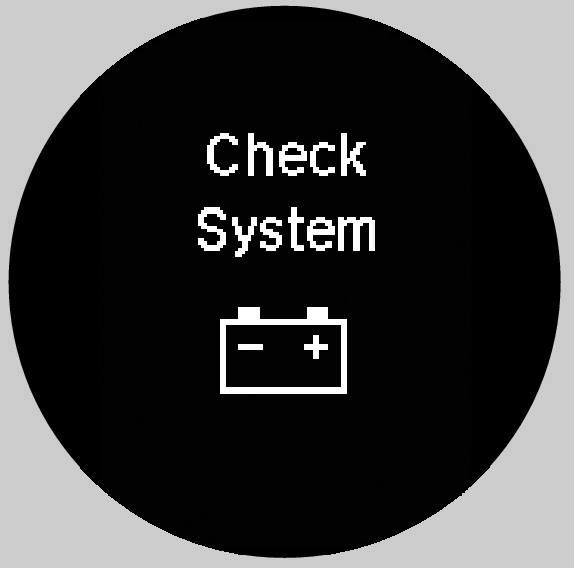

  If the Charging System Indicator Comes On

• Comes on and the beeper* sounds if you are not wearing a seat belt when you turn the ignition switch to ON II^*1.
• Blinks while driving if you have not fastened the seat belt. The beeper sounds and the indicator blinks at regular intervals.

• If the front passenger is not wearing a seat belt, the indicator comes on about a few seconds later.
• Blinks while driving if the front passenger has not fastened a seat belt. The beeper sounds and the indicator blinks at regular intervals.

• The beeper* stops and the indicator goes off when you fasten the seat belt.
• Stays on after you have fastened the seat belt
  - A detection error may have occurred in the sensor. Have your vehicle checked by a dealer.

• The beeper stops and the indicator goes off when the front passenger fastens their seat belt.
• Stays on after the front passenger has fastened the seat belt
  - A detection error may have occurred in the sensor. Have your vehicle checked by a dealer.

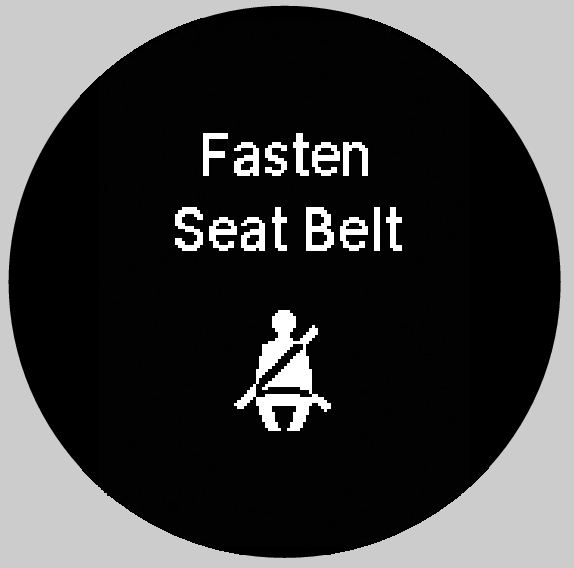

  Seat Belt Reminder

• Indicates the current shift lever position.

Shifting

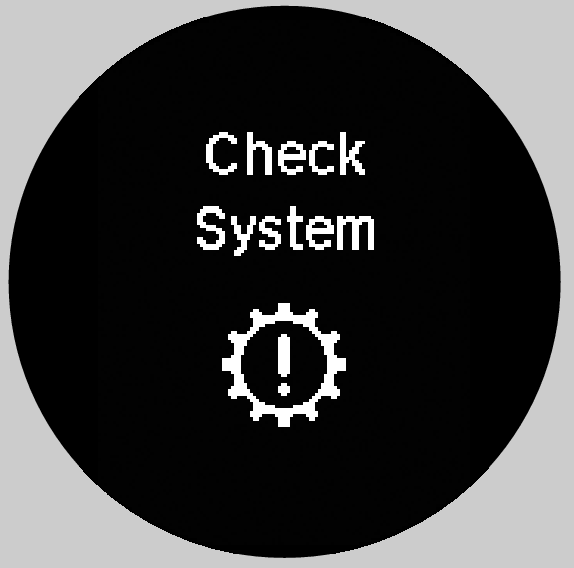

• Blinks if the transmission system has a problem.

• Blinks while driving
  - Avoid sudden starts and acceleration and have your vehicle checked by a dealer immediately.

• Comes on when 7-speed manual shift mode is applied.

7-Speed Manual Shift Mode

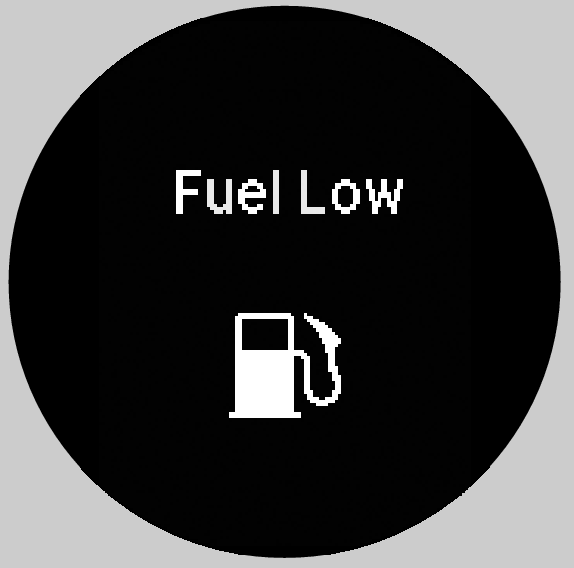

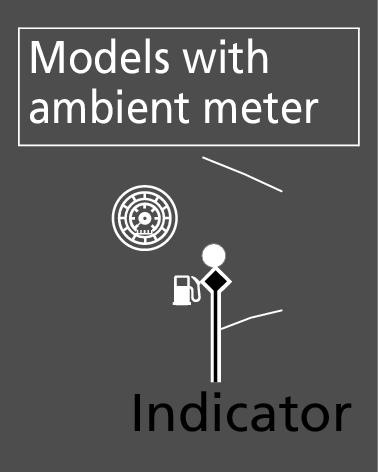

• Comes on when the fuel reserve is running low (approximately 5.3 Litres left).
• Blinks if there is a problem with the fuel gauge.

• Comes on
  - Refuel your vehicle as soon as possible.
• Blinks
  - Have your vehicle checked by a dealer.

• The fuel gauge needle is at the E* or fuel gauge dot disappeared*.

• Even if you depress the accelerator pedal, the engine speed (RPM) will not increase.
• Refuel your vehicle as soon as possible then restart the engine. The vehicle speed limit will be released when refueling 10.0 litres or more.


  Fuel Information(Petrol models)Fuel Information(Diesel models)How to Refuel

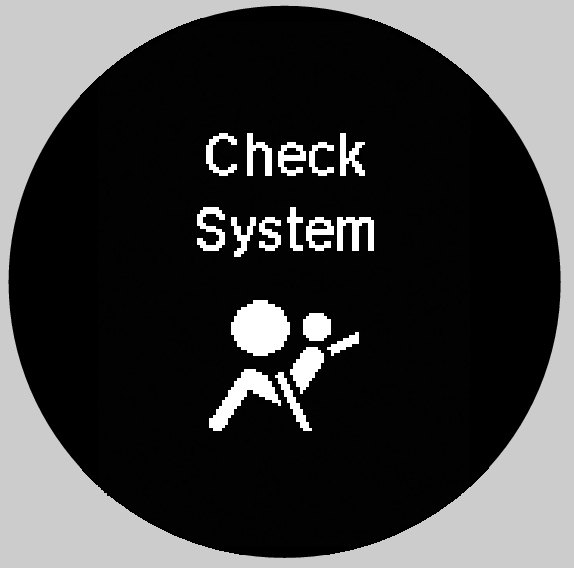

• Comes on for a few seconds when you turn the ignition switch to ON II^*1, then goes off.
• Comes on if a problem with any of the following is detected:

  • Supplemental restraint system
  • Side airbag system*
  • Side curtain airbag system*
  • Seat belt tensioner

• Stays on constantly or does not come on at all
  - Have your vehicle checked by a dealer.

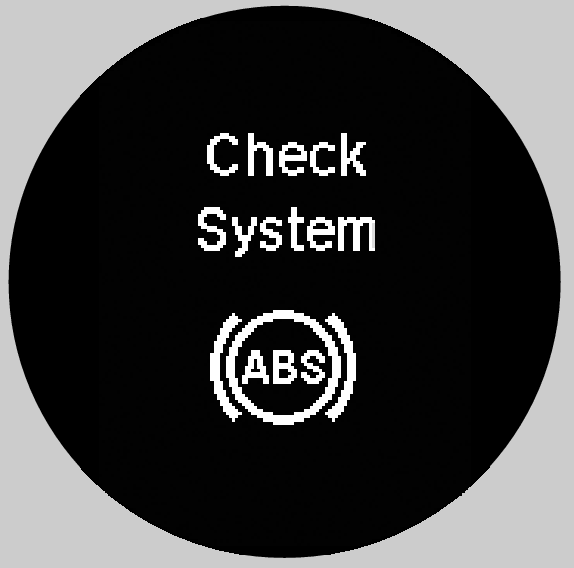

• Comes on for a few seconds when you turn the ignition switch to ON II^*1, then goes off.
• If it comes on at any other time, there is a problem with the ABS.

• Stays on constantly
  - Have your vehicle checked by a dealer. With this indicator on, your vehicle still has normal braking ability but no anti-lock function.


  Anti-lock Brake System (ABS)*

• Comes on for a few seconds when you turn the ignition switch to ON II^*1, then goes off.

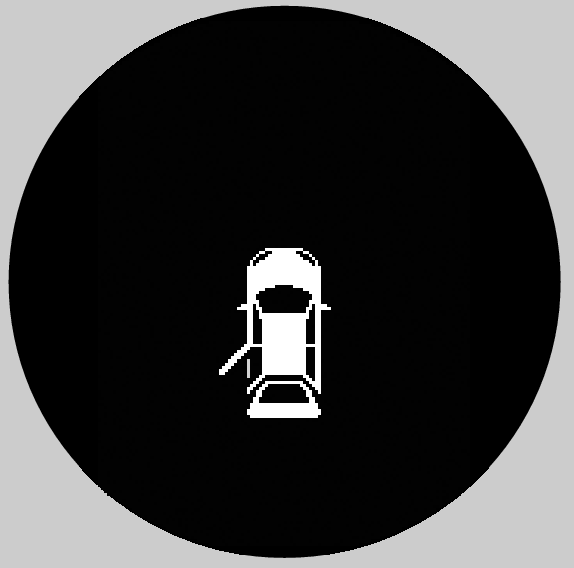

• Comes on if any door or the tailgate is not completely closed.
• The beeper sounds and the indicator comes on if any door or the tailgate is opened while driving.

• Goes off when all doors and the tailgate are closed.

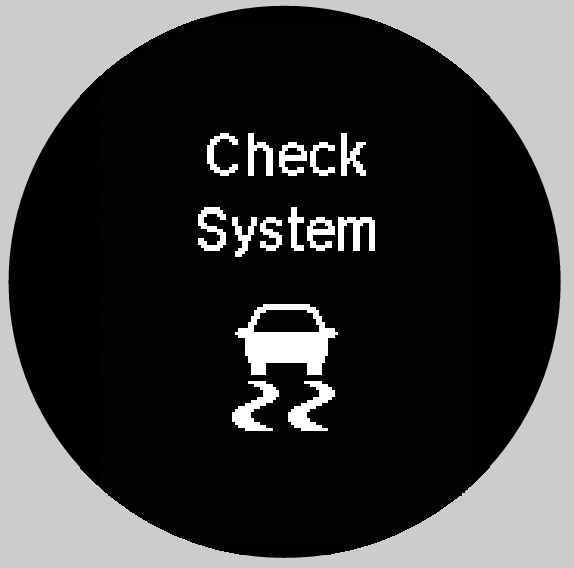

• Comes on for a few seconds when you turn the ignition switch to ON II^*1, then goes off.
• Blinks when VSA is active.
• Comes on if there is a problem with the VSA or hill start assist system*.

• Stays on constantly
  - Have your vehicle checked by a dealer.


  Vehicle Stability Assist (VSA) System*

  Hill start assist system*

• Comes on for a few seconds when you turn the ignition switch to ON II^*1, then goes off.
• Comes on when you deactivate VSA.

VSA OFF Button

• Comes on for a few seconds when you turn the ignition switch to ON II^*1, then goes off.
• Blinks when the engine coolant temperature goes up, and stays on if the temperature continues to rise.

• Goes off, then comes on blue when the engine coolant temperature is low.
• Blinks while driving
  - Drive slowly to prevent overheating.
• Stays on while driving
  - Immediately stop in a safe place and allow the engine to cool.


  Overheating

• Comes on when the engine coolant temperature is low.

• If the indicator stays on after the engine has reached normal operating temperature, there may be a problem with the temperature sensors. Have your vehicle inspected by a dealer.

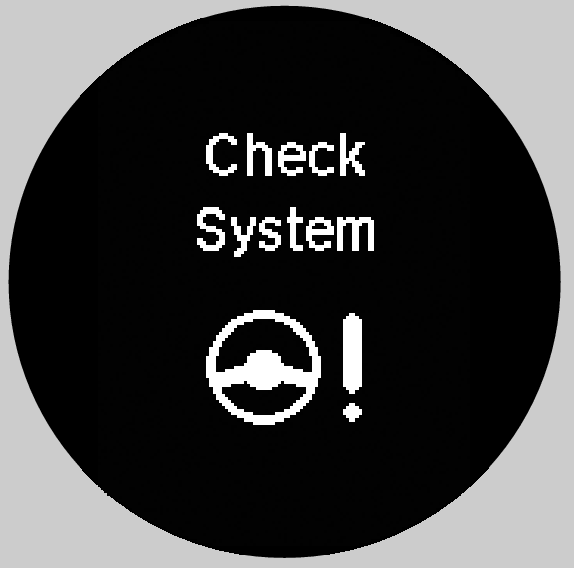

• Comes on when you turn the ignition switch to ON II^*1, and goes off when the engine starts.
• Comes on if there is a problem with the EPS system.

• Stays on constantly or does not come on at all
  - Have your vehicle checked by a dealer.


  If the Electric Power Steering (EPS) System Indicator Comes On

• Comes on for a few seconds when you turn the ignition switch to ON II^*1, then goes off.
• Comes on along with a beep when a problem is detected. A system message on the multi-information display appears at the same time.

• While the indicator is on, press the (information) button to see the message again.
• Refer to the Indicators information in this chapter when a system message appears on the multi-information display. Take appropriate action for the message.
• The multi-information display does not return to the normal screen unless the warning is cancelled, or the button is pressed.

• Comes on for a few seconds when you turn the ignition switch to ON II, then goes off.
• Comes on for a while when you turn the ignition switch to ON II under the extremely low ambient temperature condition, then goes off.

• Stays on
  - The engine is cold. Do not start the engine until the indicator goes off.

Starting the Engine

• Goes off quickly even when ambient temperature is extremely low
  - Have your vehicle inspected by a dealer.

• Comes on for a few seconds when you turn the ignition switch to ON II, then goes off.
• Comes on while driving if there is a problem with the engine control system.

If the PGM-FI Indicator Comes On

• Comes on if you do not use the proper fuel for the climate or regional conditions.

• Use of inadequate fuel may reduce engine power.


  Fuel recommendation

• Comes on when water has accumulated in the fuel system.
• Comes on if you have parked your vehicle for an extended period.

• Have a dealer drain off the water from the system as soon as possible. Accumulated water may cause damage to the fuel system.
• Have your vehicle checked by a dealer.

• Blinks when you operate the turn signal lever.
• Blink along with all turn signals if you press the hazard warning button.

• Blink along with all turn signals when you depress the brake pedal while the high speed driving.

• Does not blink or blinks rapidly
  - A turn signal light bulb has blown. Change the bulb immediately.



  Headlight BulbsFog Light Bulbs*Front Turn Signal Light BulbsSide Turn Signal/Emergency Indicator Light BulbsPosition Light BulbsPosition LightsBack-Up Light and Rear Turn Signal Light BulbsBrake/TaillightsHigh-Mount Brake LightRear Licence Plate Light BulbsOther Light Bulbs

  Emergency Stop Signal

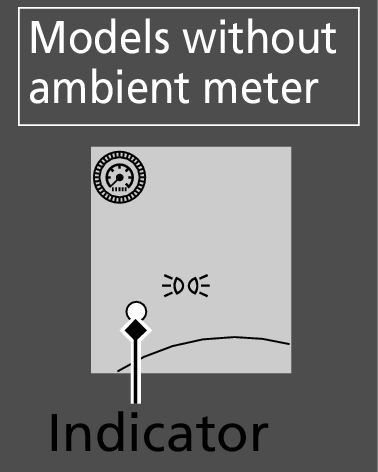

• Comes on when the high beam headlights are on.

• Comes on whenever the light switch is on.

• If you remove the key from the ignition switch*, or set the power mode* to VEHICLE OFF (LOCK) while the exterior lights are on, a chime sounds when the driver’s door is opened.

• Comes on when the fog lights are on.

• Comes on if there is a problem with the low beam headlights.

• Have your vehicle checked by a dealer.

• Comes on briefly when you turn the ignition switch to ON II^*1, then goes off.
• Comes on if the immobilizer system cannot recognize the key information.

• Blinks -
  Models without keyless access system
  You cannot start the engine. Turn the ignition switch to LOCK 0, pull the key out, and then insert the key and turn it to ON II again.
  Models with keyless access system
  You cannot start the engine. Set the power mode to VEHICLE OFF (LOCK), then select the ON mode again.
• Repeatedly blinks
  - The system may be malfunctioning. Have your vehicle checked by a dealer.
• Do not attempt to alter this system or add other devices to it. Electrical problems can occur.

• Blinks when the security system alarm has been set.

Security System Alarm*

• Comes on when you press the CRUISE button.

Cruise Control*

• Comes on when you have set a speed for cruise control.

Cruise Control*

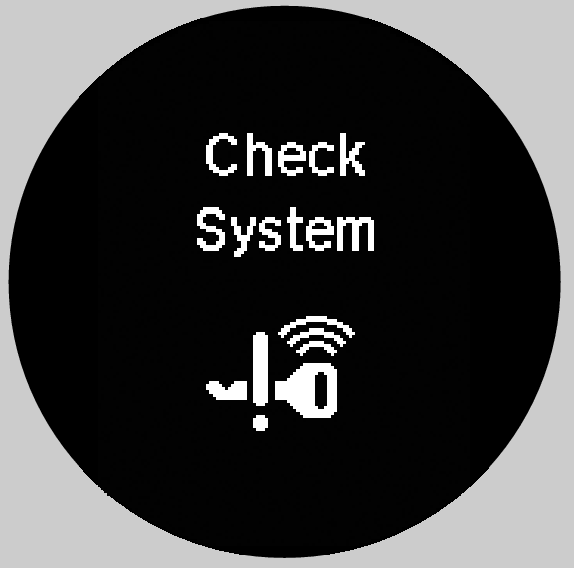

• Comes on for a few seconds when you set the power mode to ON, then goes off.
• Comes on as soon as a problem is detected in the keyless access system or keyless starting system.

• Stays on constantly or does not come on at all -
  Have your vehicle checked by a dealer.

• Comes on when you set the power mode to ON, and goes off when the engine starts.
• Comes on if the starting system has a problem.

• As a temporary measure, press and hold the ENGINE START/STOP button for up to 15 seconds while pressing the brake pedal and clutch pedal (manual transmission only), and manually start the engine. Have your vehicle checked by a dealer.

• Comes on when you press the ENGINE START/STOP button to turn the engine off without the shift lever in P.

• Press the ENGINE START/STOP button twice after moving the shift lever to P.

• Comes on when the steering wheel is locked.

• Move the steering wheel left and right while pressing the ENGINE START/STOP button.

• Comes on while the engine is operating in its most economical range.
