Other Light Bulbs
Ceiling Light Bulb
When replacing, use the following bulb.
Ceiling Light:
8 W
|
-

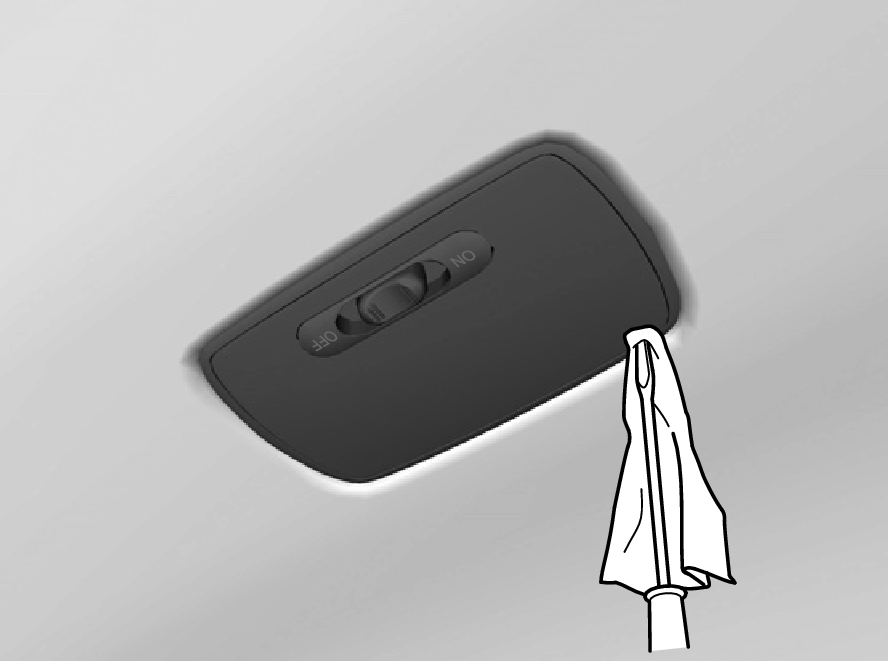

- Pry on the edge of the cover using a flat-tip screwdriver to remove the cover.
- Wrap the flat-tip screwdriver with a cloth to prevent scratches.
- Pry on the edge of the cover using a flat-tip screwdriver to remove the cover.
-

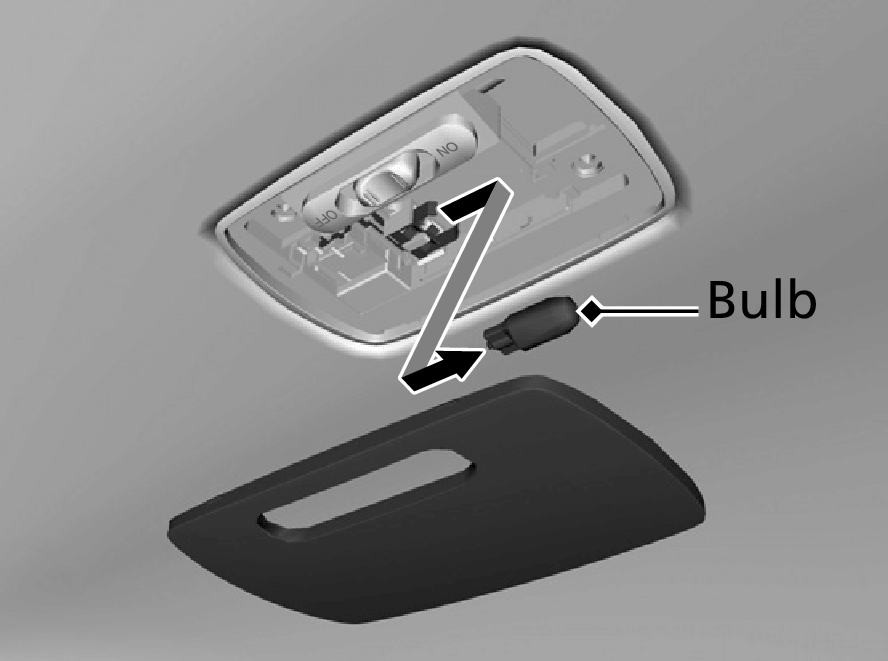

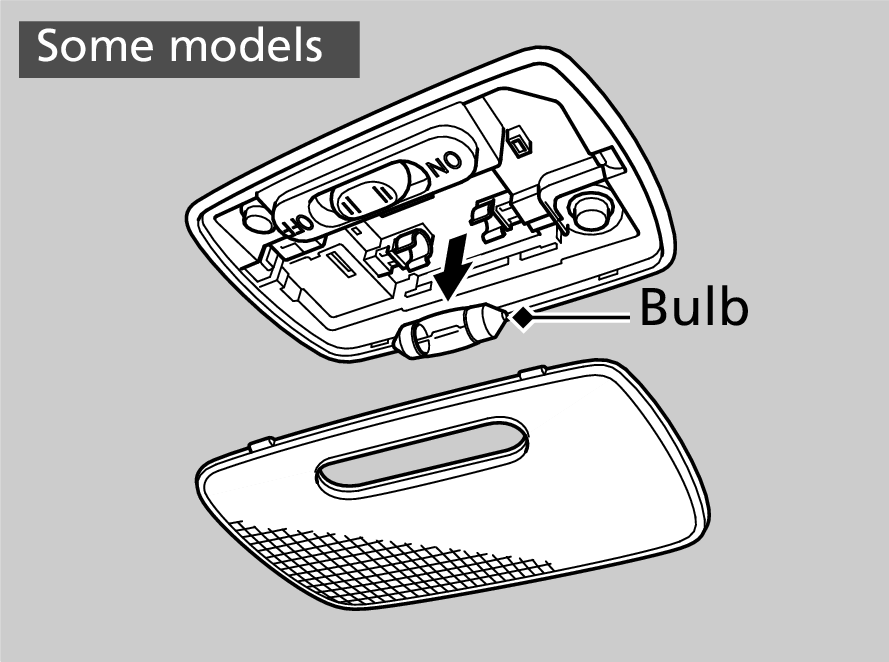

- Remove the old bulb and insert a new bulb.

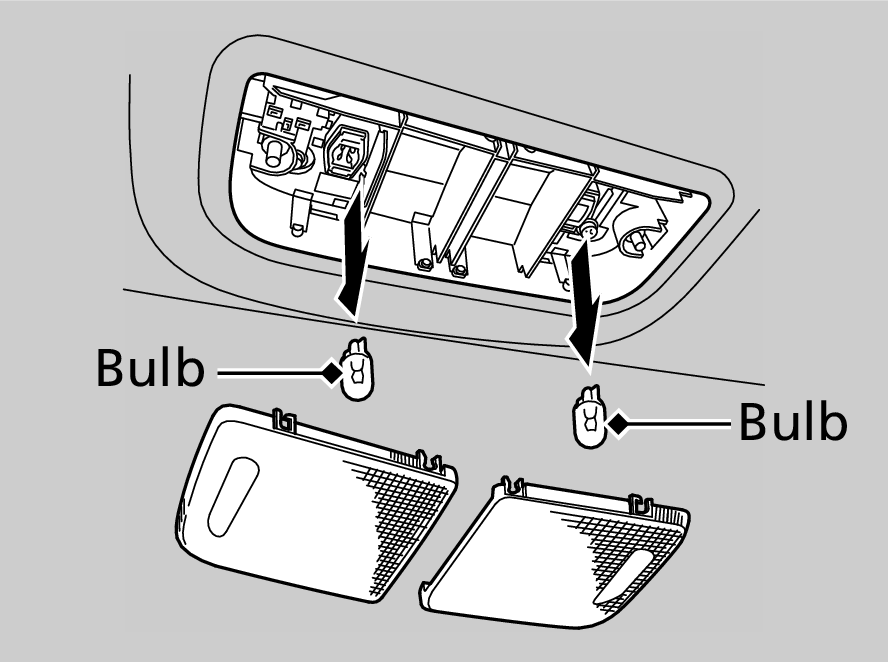

Map Light Bulbs*
When replacing, use the following bulbs.
Map Light:
8 W
|
Models without colour audio system
-

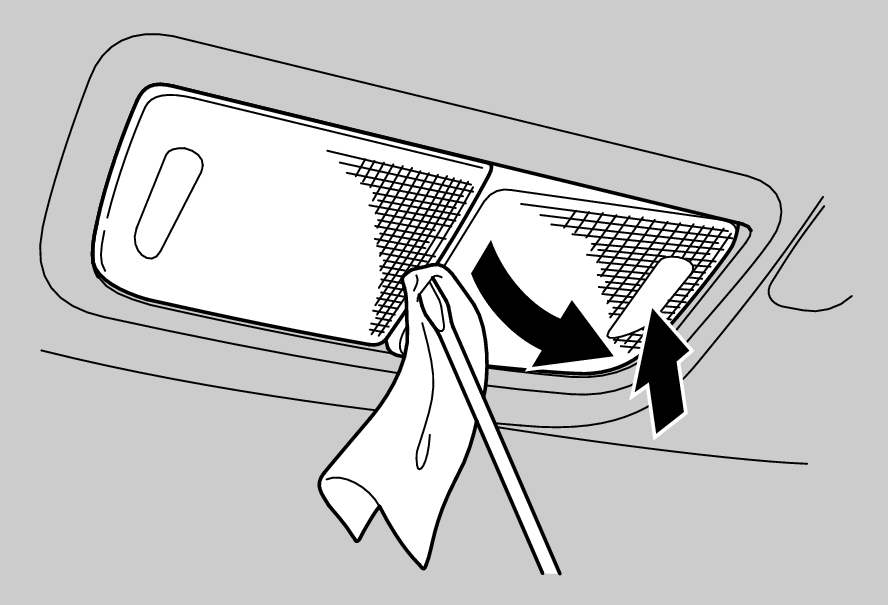

- Pry on the edge of the cover using a flat-tip screwdriver to remove the cover.
- Wrap the flat-tip screwdriver with a cloth to prevent scratches.
- Pry on the edge of the cover using a flat-tip screwdriver to remove the cover.
-
- Remove the old bulb and insert a new bulb.
Models with colour audio system
-

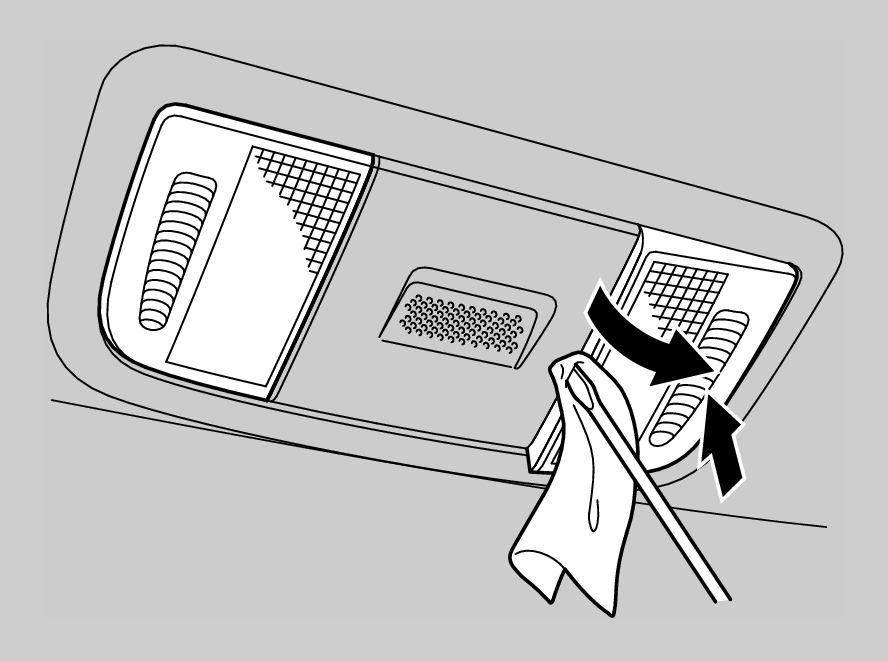

- Pry on the edge of the cover using a flat-tip screwdriver to remove the cover.
- Wrap the flat-tip screwdriver with a cloth to prevent scratches.
- Pry on the edge of the cover using a flat-tip screwdriver to remove the cover.
-

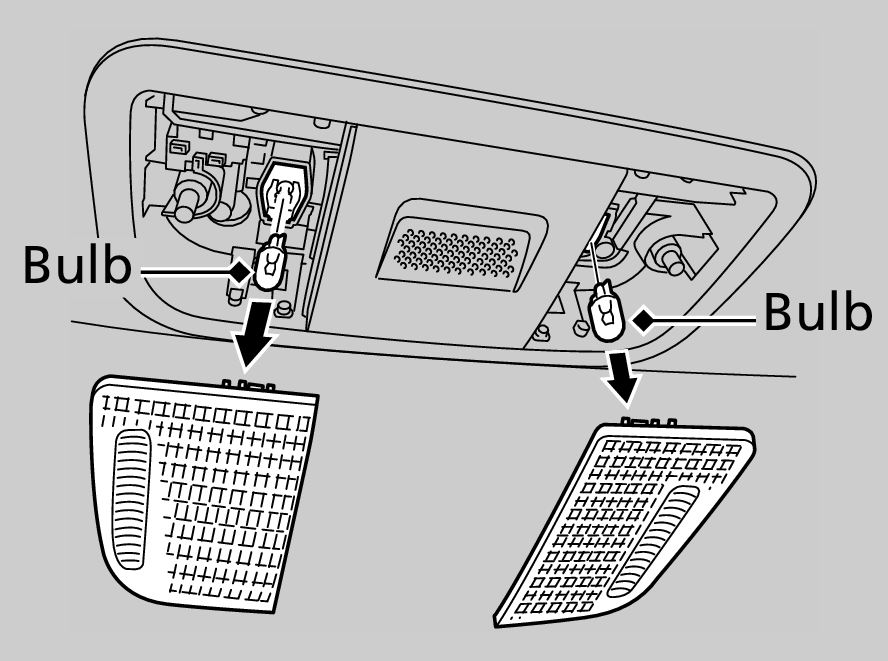

- Remove the old bulb and insert a new bulb.
Luggage Area Light Bulb*
When replacing, use the following bulb.
Luggage Area Light:
5 W
|
-

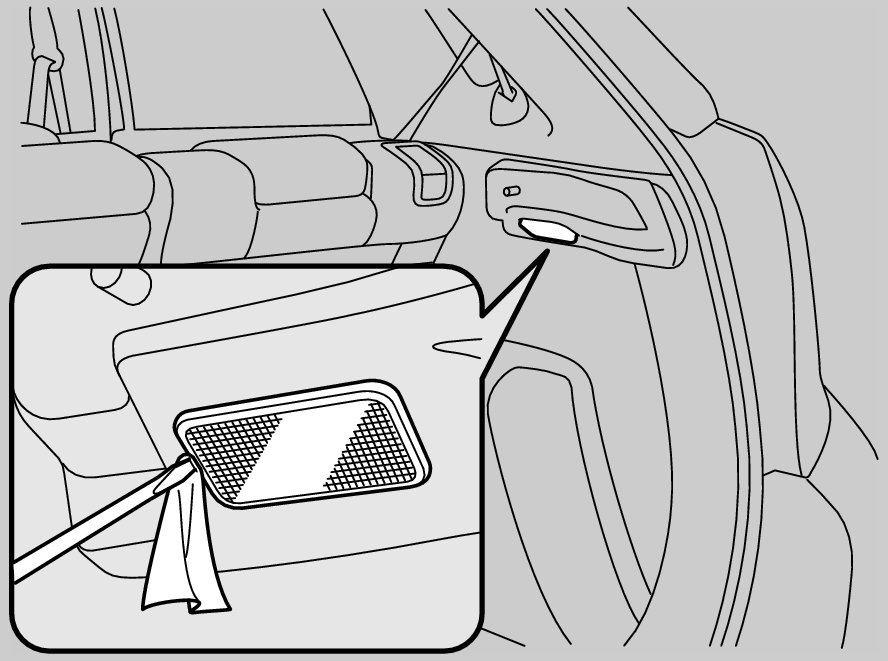

- Pry on the edge of the cover using a flat-tip screwdriver to remove the cover.
- Wrap the flat-tip screwdriver with a cloth to prevent scratches.
- Pry on the edge of the cover using a flat-tip screwdriver to remove the cover.
-

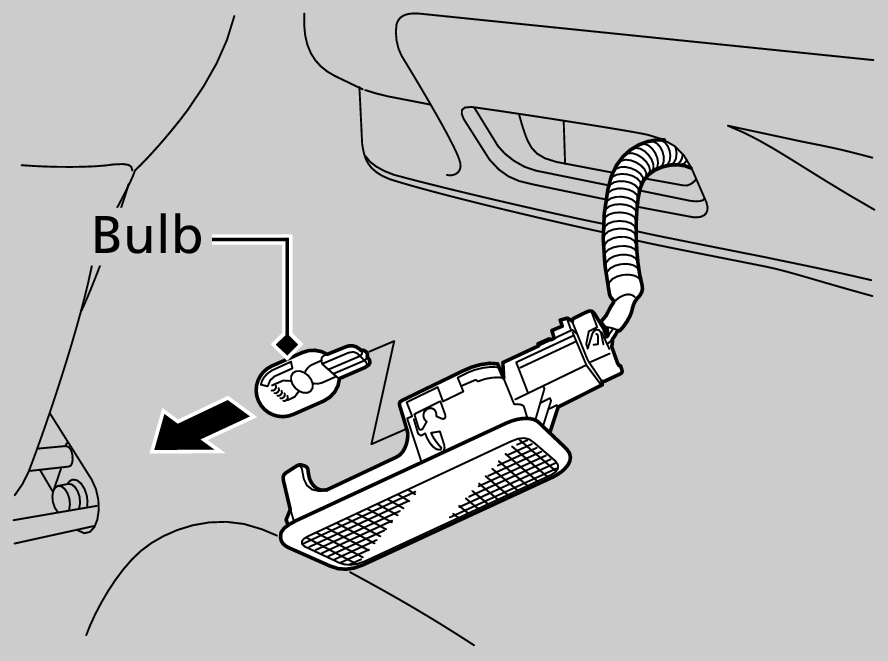

- Remove the old bulb and insert a new bulb.
* Not available on all models
