Headlight Bulbs

When replacing, use the following bulbs.

Models with halogen low beam headlights
High/Low beam headlight:
60/55 W (H4 for halogen bulb type)
Models with LED type low beam headlights
High beam headlight:
60 W (HB3 for halogen bulb type)
Low beam headlight:
LED type
Detail

NOTICE
Halogen bulbs get very hot when lit.
Oil, perspiration, or a scratch on the glass can cause the bulb to overheat and shatter.


The headlight aim is set by the factory, and does not need to be adjusted. However, if you regularly carry heavy items in the luggage area or tow a trailer, have the aiming readjusted at a dealer or by a qualified technician.

When replacing a halogen bulb, handle it by its base, and protect the glass from contact with your skin or hard objects. If you touch the glass, clean it with denatured alcohol and a clean cloth.

High/Low Beam Headlight*

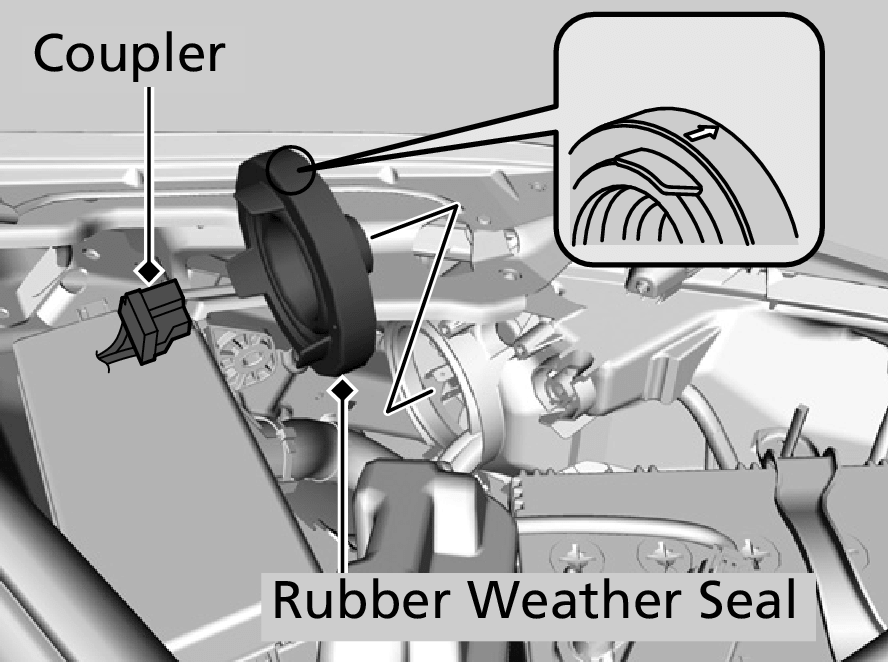

  1. Remove the coupler.
  2. Remove the rubber weather seal.
Honda Jazz Rubber Weather Seal

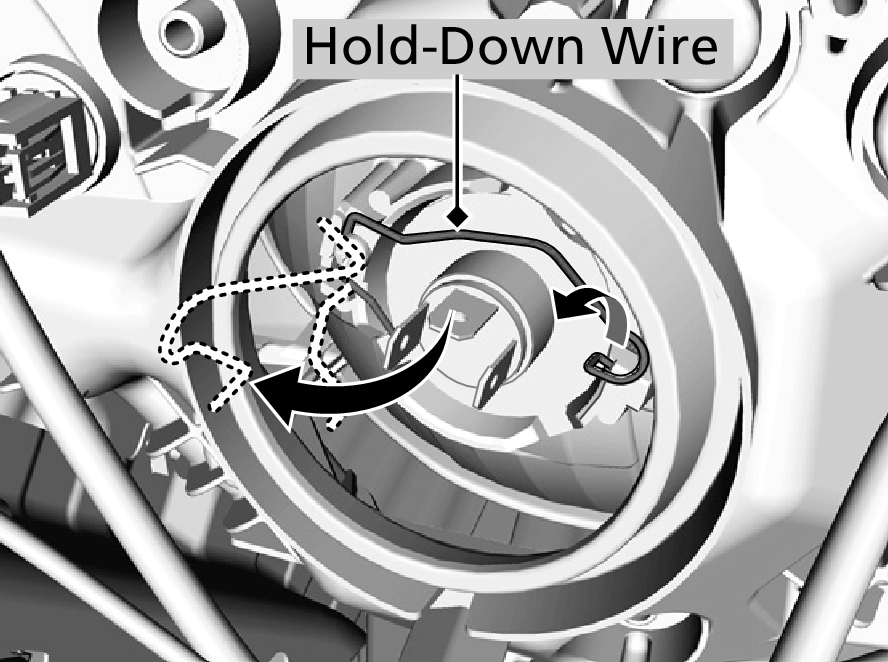

  1. Remove the hold-down wire, then remove the bulb.
  2. Insert a new bulb.
Honda Jazz Car Hold-Down Wire

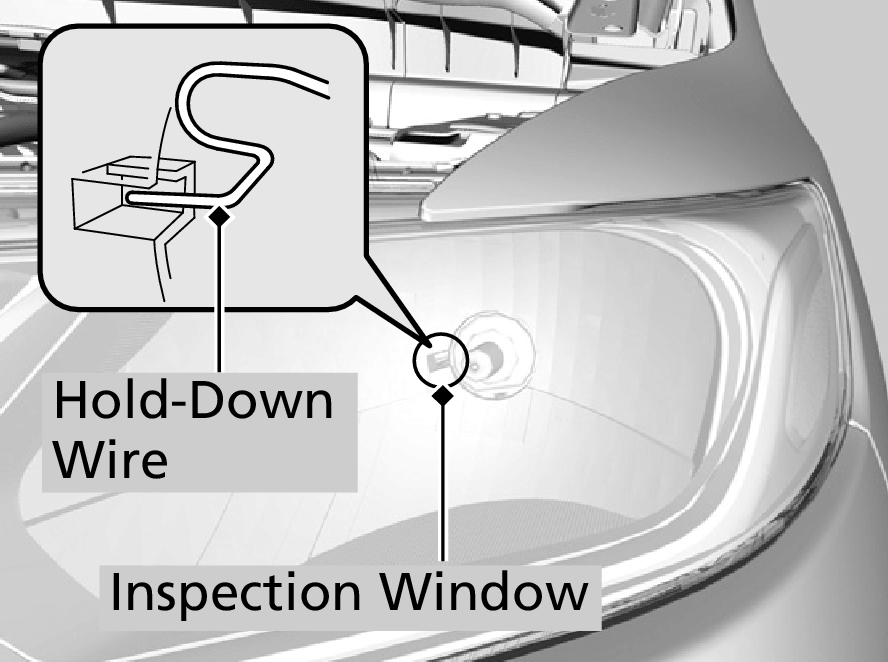

  1. Reinstall the hold-down wire. Hook the end of the wire on the knob in the slot.
    • You can see if the hold-down wire is in the right place from the inspection window.
  2. Reinstall the rubber weather seal.
  3. Insert the coupler into the connector of the bulb.

High Beam Headlight*

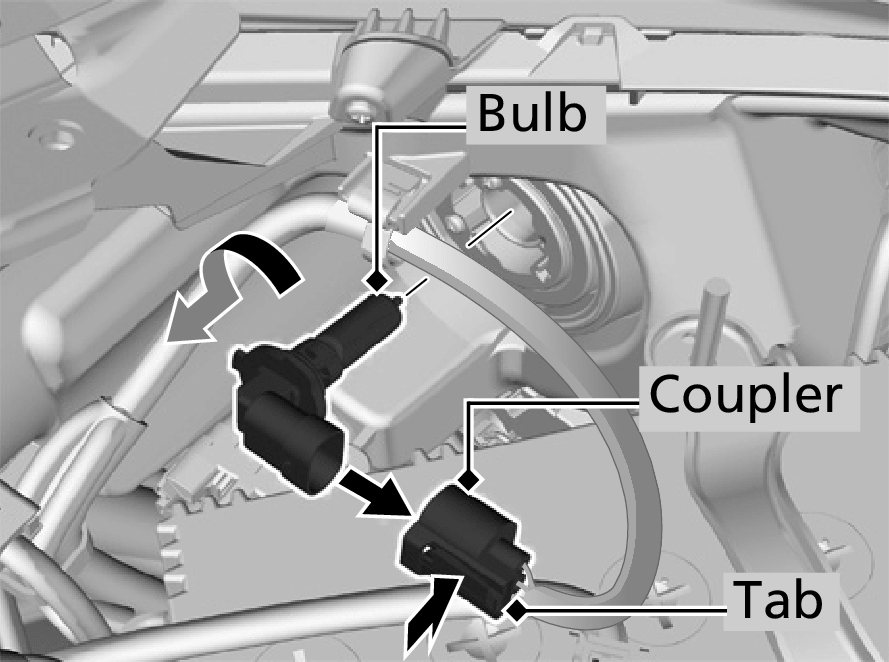

  1. Push the tab to remove the coupler.
  2. Rotate the old bulb to the left to remove.
  3. Insert a new bulb into the headlight assembly and turn it to the right.
  4. Insert the coupler into the connector of the bulb.
Detail
Models with LED type low beam headlights
Low beam headlights are LED type. Have an authorised Honda dealer inspect and replace the light assembly.

* Not available on all models
