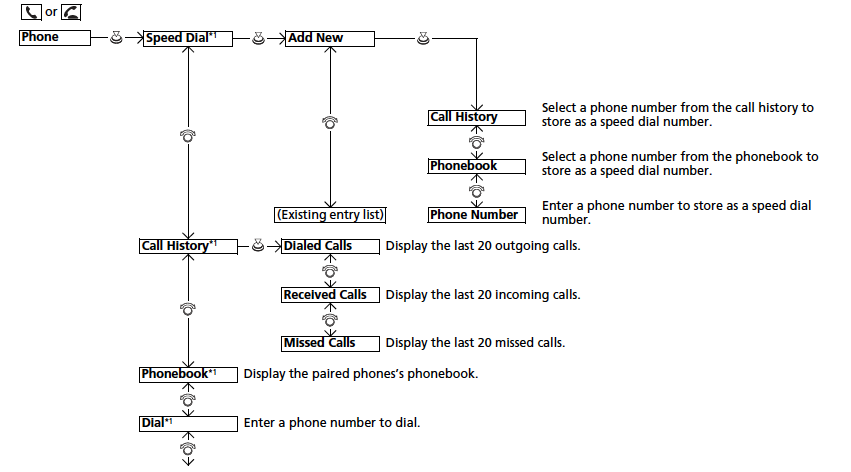

HFT Menus

The ignition switch must be in ACCESSORY I or ON II to use the system.

Detail
To use HFT, you must first pair your Bluetooth-compatible mobile phone to the system while the vehicle is parked.

Some functions are limited while driving.
Honda Jazz Audio System Setup

*1: Appears only when a phone is connected to the system.

*1: Appears only when a phone is connected to the system.

*1: Appears only when a phone is connected to the system.

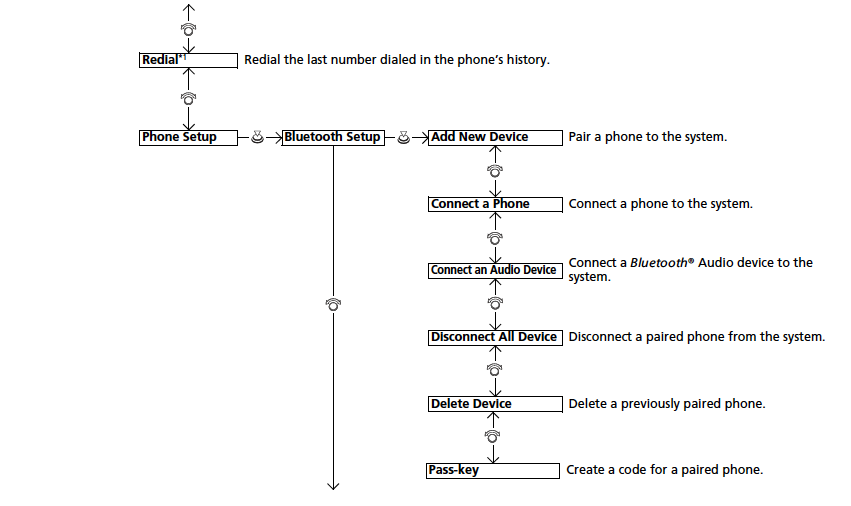

Phone Setup

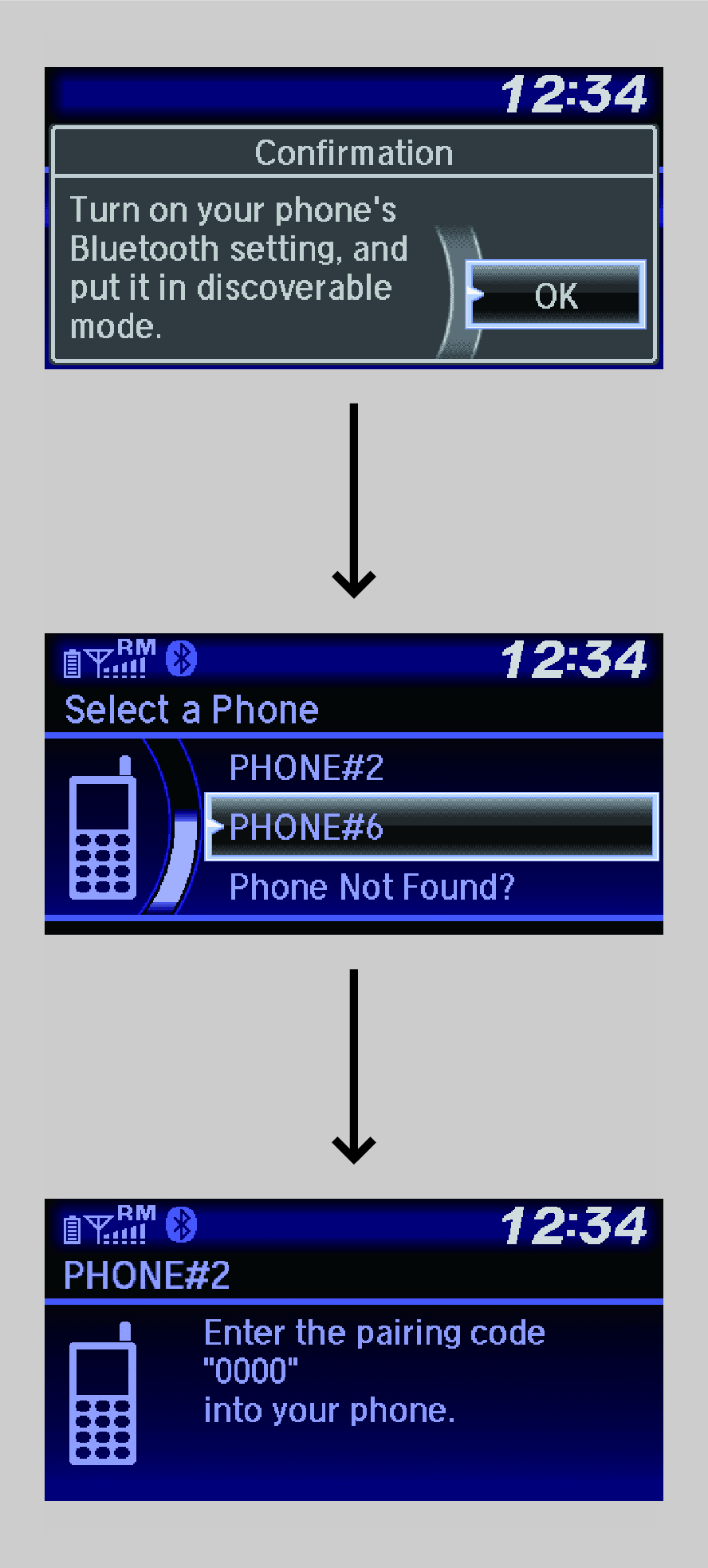

To pair a mobile phone (No phone has been paired to the system)

  1. Press the button or the button.
  2. Rotate to select Yes, then press .
  3. Make sure your phone is in search or discoverable mode, then press .
    • HFT automatically searches for a Bluetooth® device.
  4. When your phone appears on the list, select it by pressing .
    • If your phone doesn’t appear, select Phone Not Found? and search for Bluetooth® devices using your phone.
      From your phone, select Honda HFT.
  5. The system gives you a pairing code on the audio/information screen.
    • Confirm if the pairing code on the screen and your phone match.
      This may vary by phone.
  6. A notification appears on the screen if pairing is successful.
Honda Jazz Audio System Settings

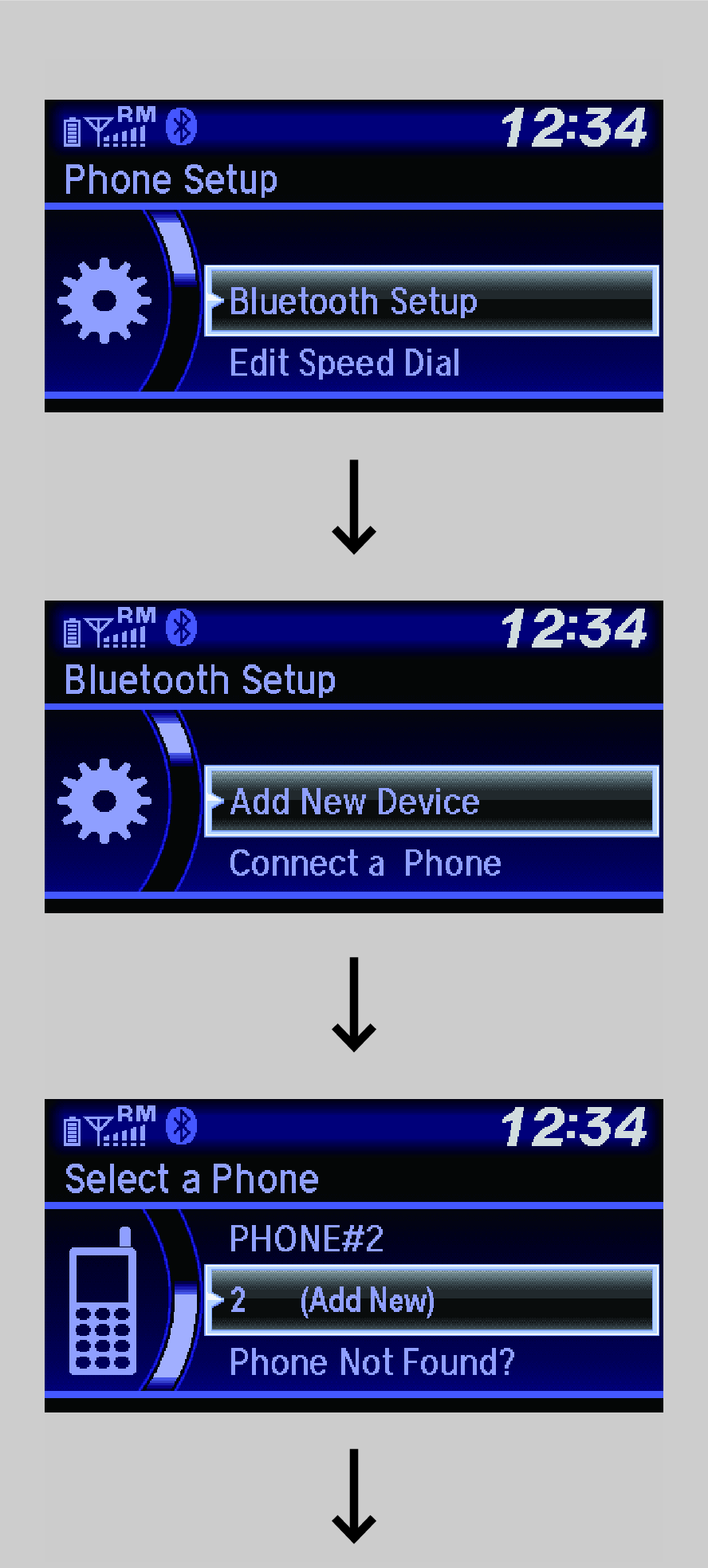

To pair a mobile phone (when a phone has already been paired to the system)

  1. Press the button or the button.
    • If a prompt appears asking to connect to a phone, select No and proceed with step 2.
  2. Rotate to select Phone Setup, then press .
  3. Rotate to select Bluetooth Setup, then press .
  4. Rotate to select Add New Device, then press .
    • The screen changes to device list.
  5. Rotate to select Add New, then press .
  1. Make sure your phone is in search or discoverable mode, then press .
    • HFT automatically searches for a Bluetooth® device.
  2. When your phone appears on the list, select it by pressing .
    • If your phone does not appear, select Phone Not Found? and search for Bluetooth® devices using your phone.
      From your phone, select Honda HFT.
  3. The system gives you a pairing code on the audio display.
    • Confirm if the pairing code on the screen and your phone match.
      This may vary by phone.

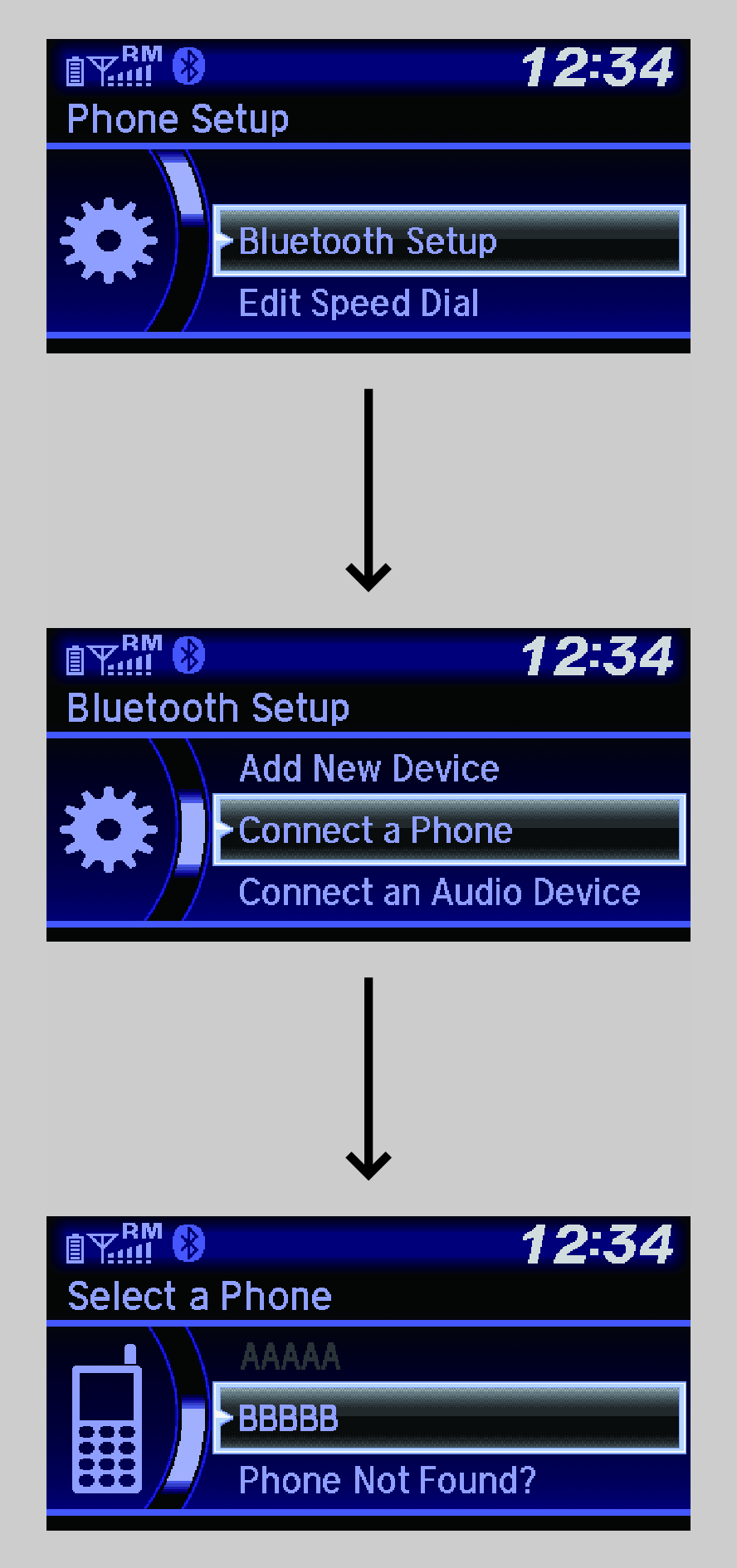

To Change the currently paired phone

  1. Press the button or the button.
  2. Rotate to select Phone Setup, then press .
  3. Rotate to select Bluetooth Setup, then press .
  4. Rotate to select Connect a Phone, then press .
    • The screen changes to a device list.
  5. Rotate to select a desired device name, then press .
    • The system disconnects the connected phone and starts searching for another paired phone.
Honda Jazz Audio System Setup

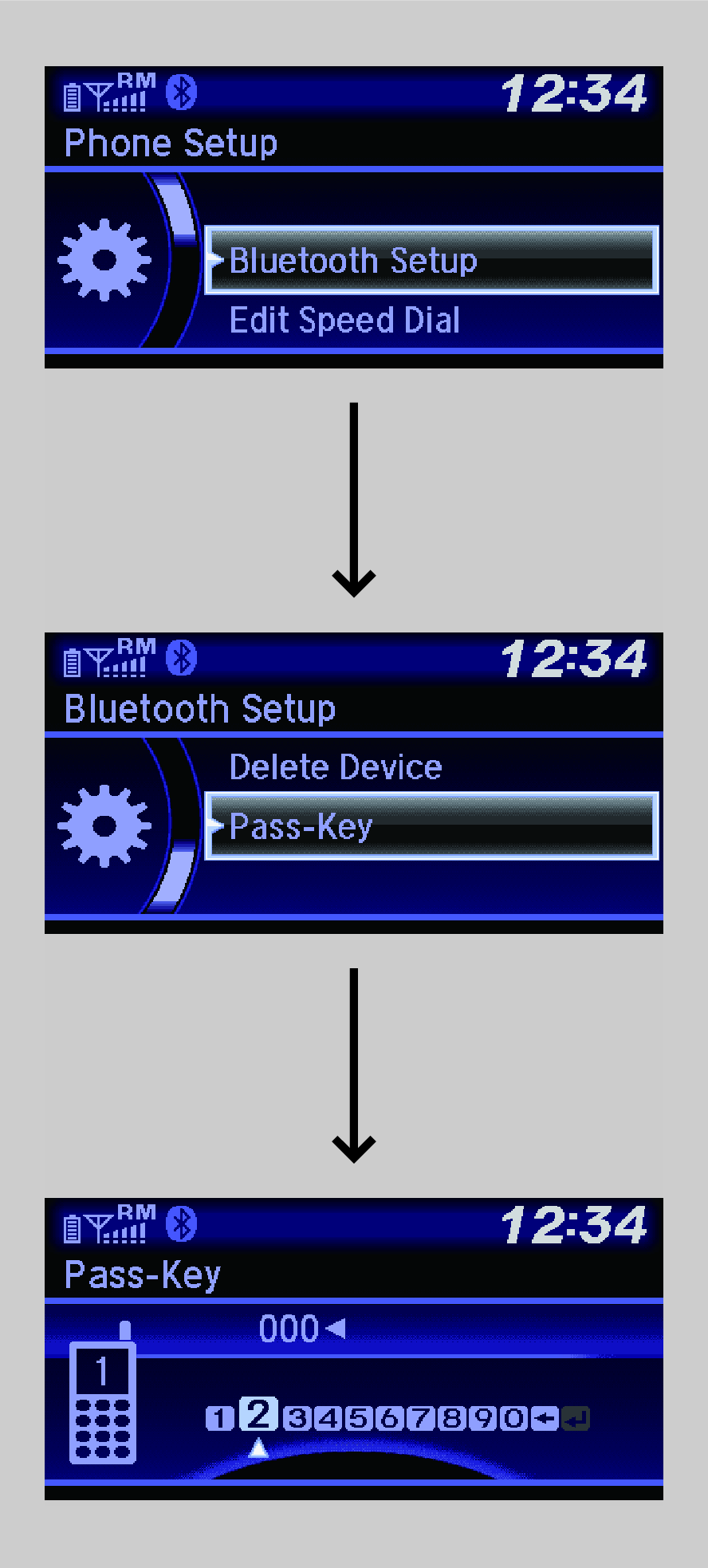

To change the pairing code setting

  1. Press the button or the button.
  2. Rotate to select Phone Setup, then press .
  3. Rotate to select Bluetooth Setup, then press .
  4. Rotate to select Pass-Key, then press .
  5. Input a new pairing code, then press .

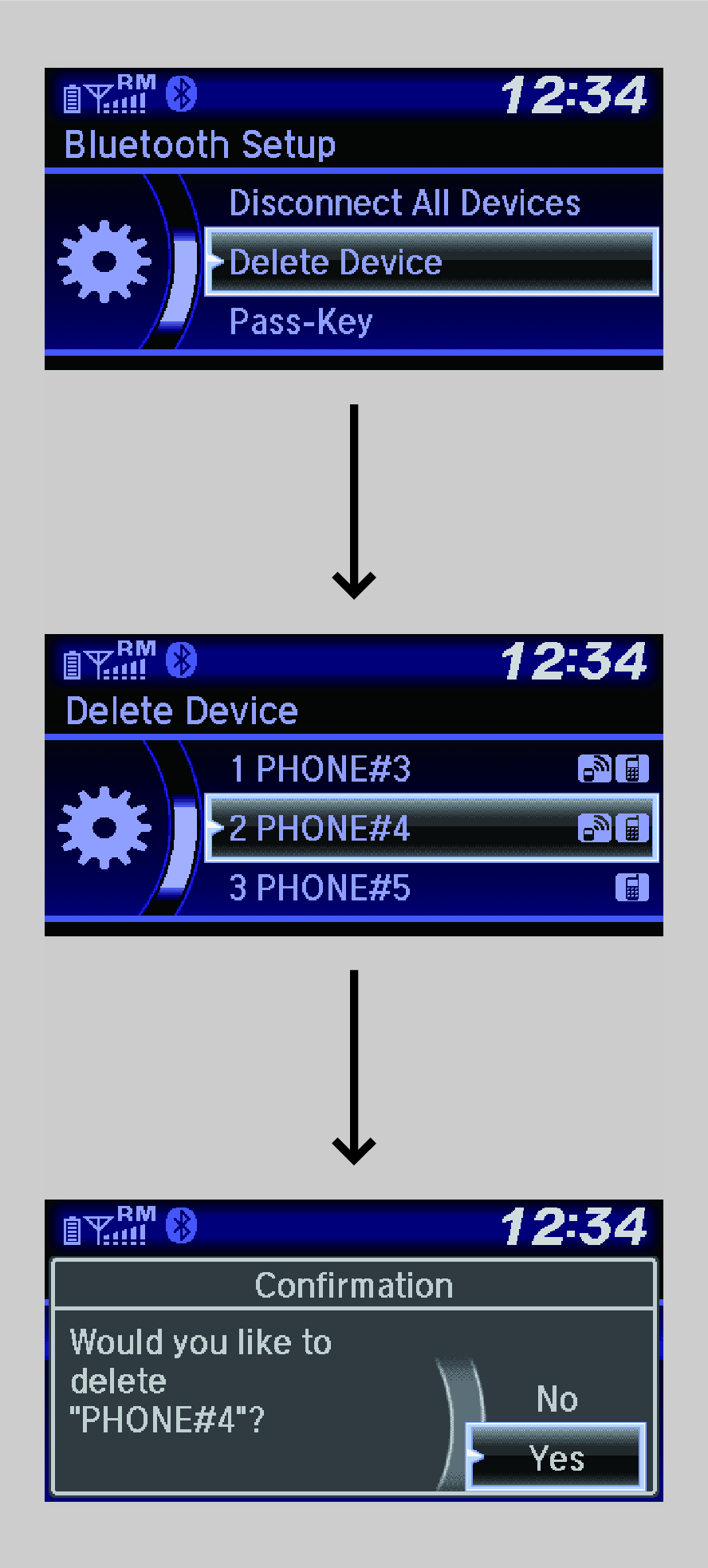

To delete a paired phone

  1. Press the button or the button.
  2. Rotate to select Phone Setup, then press .
  3. Rotate to select Bluetooth Setup, then press .
  4. Rotate to select Delete Device, then press .
    • The screen changes to a device list.
  5. Rotate to select a phone you want to delete, then press .
  6. A confirmation message appears on the screen. Rotate to select Yes, then press .
Detail
Your Bluetooth-compatible phone must be paired to the system before you can make and receive hands-free calls.

Phone Pairing Tips:
  • You cannot pair your phone while the vehicle is moving.
  • Up to six phones can be paired.
  • Your phone's battery may drain faster when it is connected to the system.
  • If your phone is not ready for pairing or not found by the system within three minutes, the system will time out and returns to idle.

Once you have paired a phone, you can see it displayed on the screen with one or two icons on the right side.
These icons indicate the following:
: The phone can be used with HFT.
: The phone is compatible with Bluetooth® Audio.

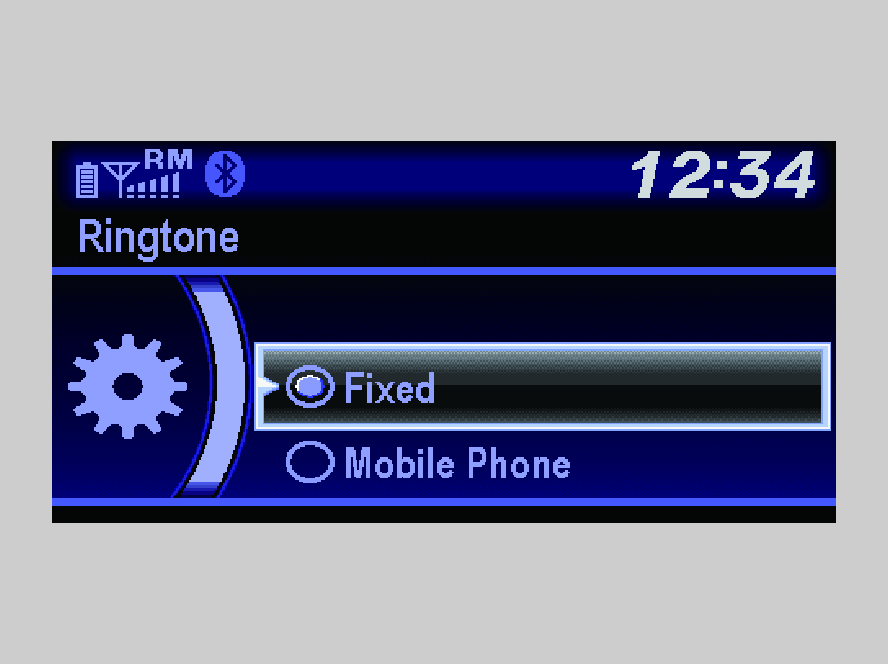

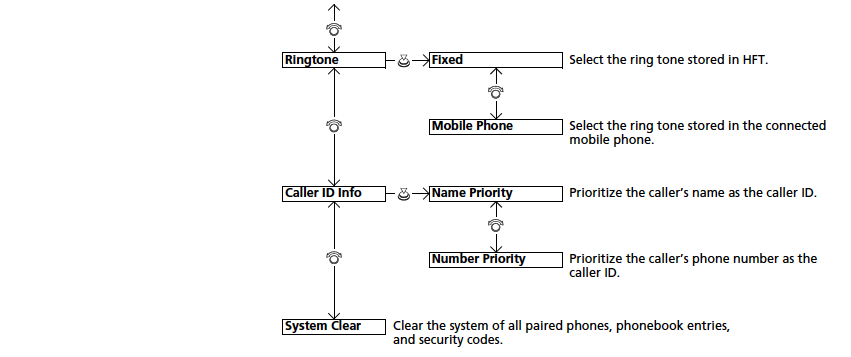

Ring Tone

You can change the ring tone setting.

  1. Press the button or the button.
  2. Rotate to select Phone Setup, then press .
  3. Rotate to select Ringtone, then press .
  4. Rotate to select Fixed or Mobile Phone, then press .
Detail
Fixed:
The fixed ring tone sounds from the speakers.

Mobile Phone:
The ring tone stored in the connected mobile phone sounds from the speakers.

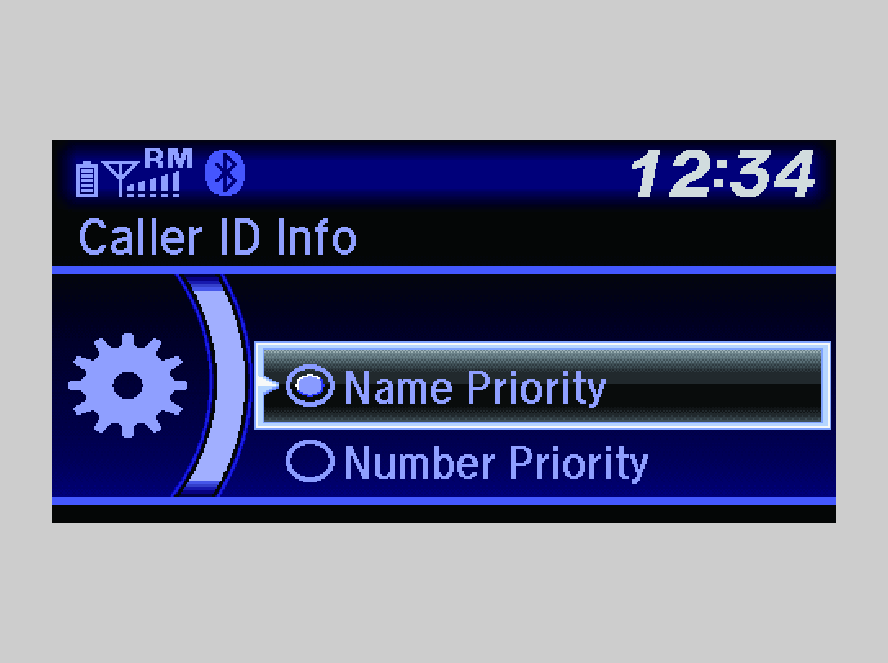

Caller’s ID Information

You can select a caller’s information to be displayed when you have an incoming call.

  1. Press the button or the button.
  2. Rotate to select Phone Setup, then press .
  3. Rotate to select Caller ID Info, then press .
  4. Rotate to select a mode you want, then press .
Detail
Name Priority:
A caller’s name is displayed if it is stored in the phonebook.

Number Priority:
A caller’s phone number is displayed.

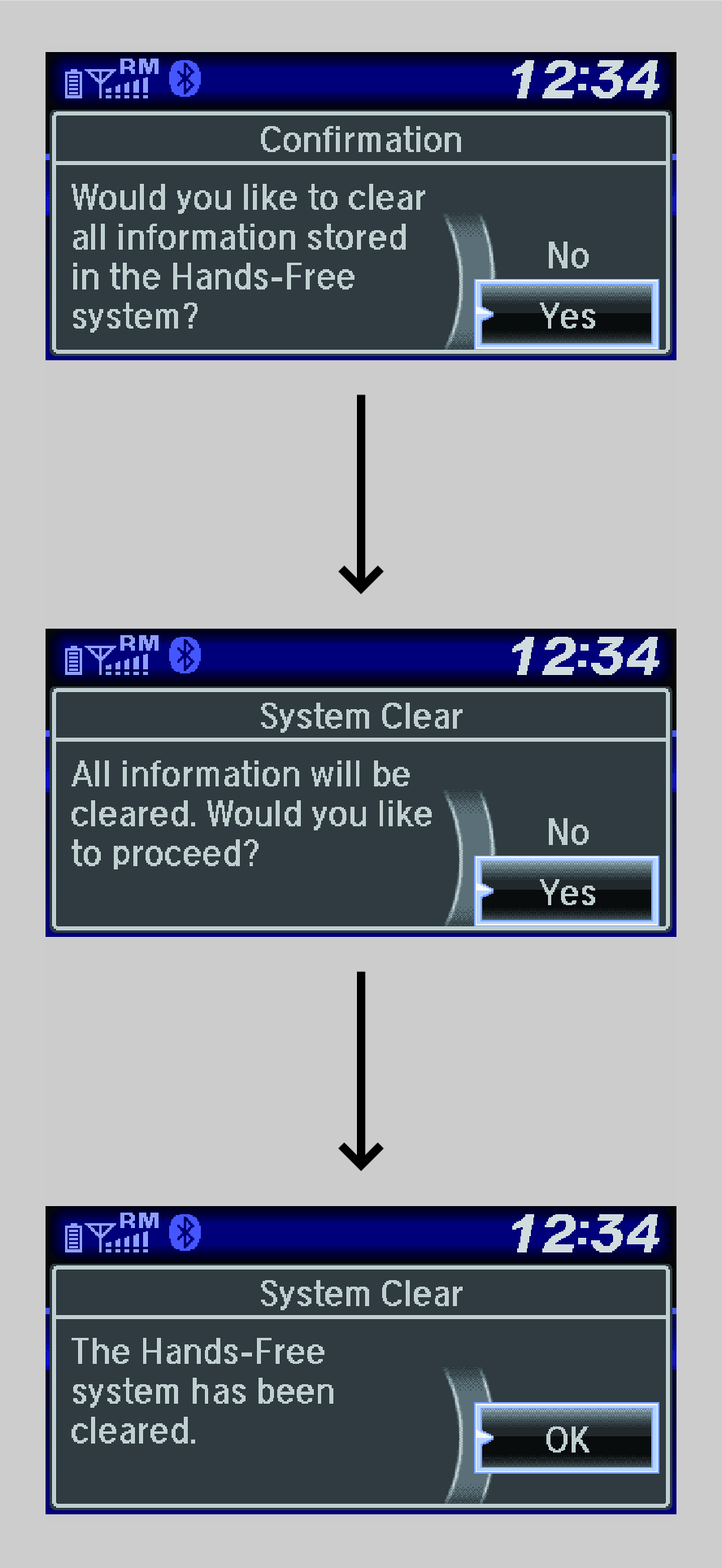

To Clear the System

Pairing codes, paired phones, all speed dial entries, all call history data, and all imported phonebook data are erased.

  1. Press the button or the button.
  2. Rotate to select Phone Setup, then press .
  3. Rotate to select System Clear, then press .
  4. Rotate to select Yes, then press .
  5. A confirmation message appears on the screen. Rotate to select Yes, then press .
  6. A confirmation appears on the screen. Press .

Automatic Import of Mobile Phonebook and Call History

When your phone is paired, the contents of its phonebook and call history are automatically imported to the system.

Detail

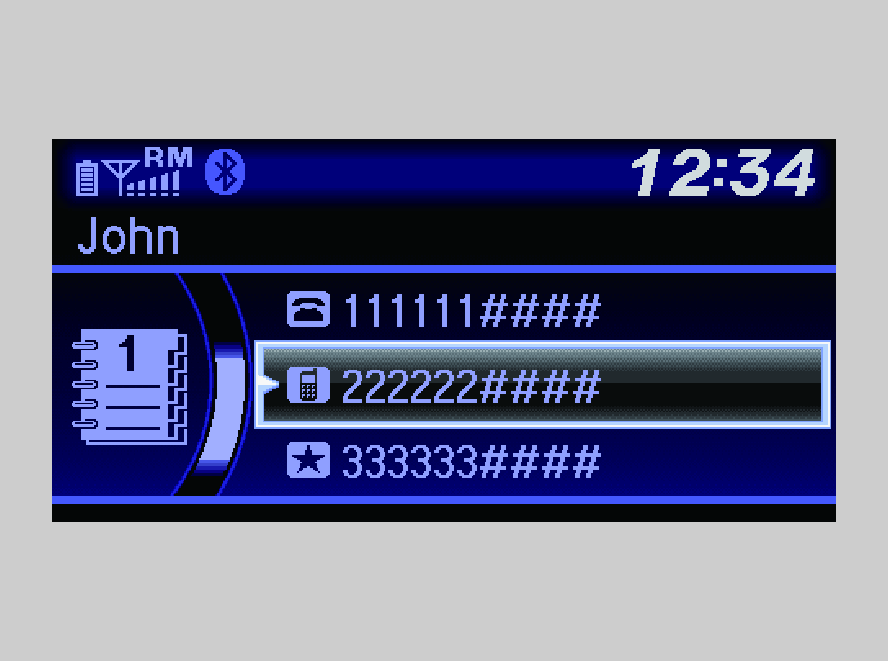

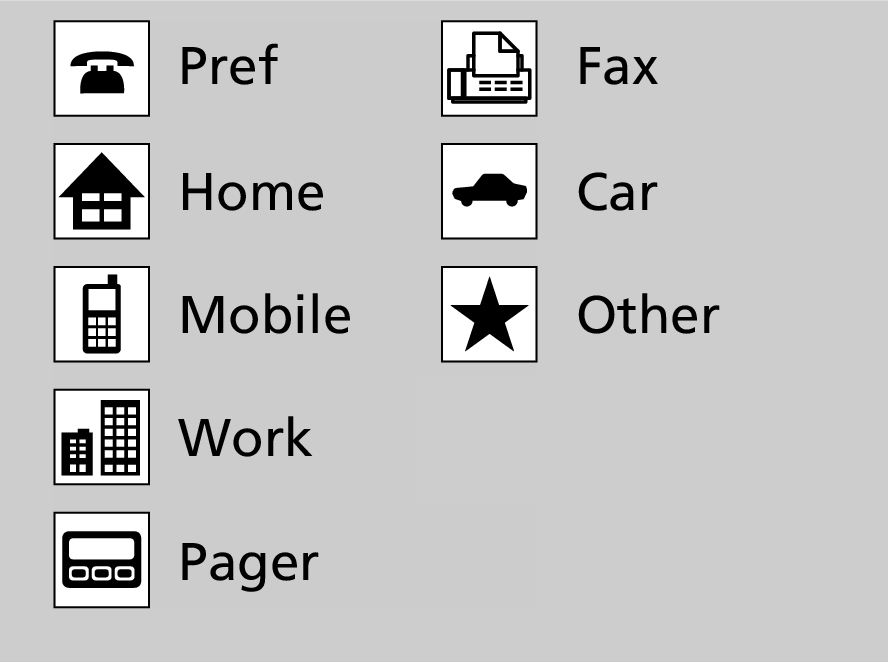

When you select a person from the list in the mobile phonebook, you can see up to three category icons. The icons indicate what types of numbers are stored for that name.


If a name has four or more numbers, ... appears instead of category icons.

On some phones, it may not be possible to import the category icons to the system.

The phonebook is updated after every connection.
Call history is updated after every connection or call.

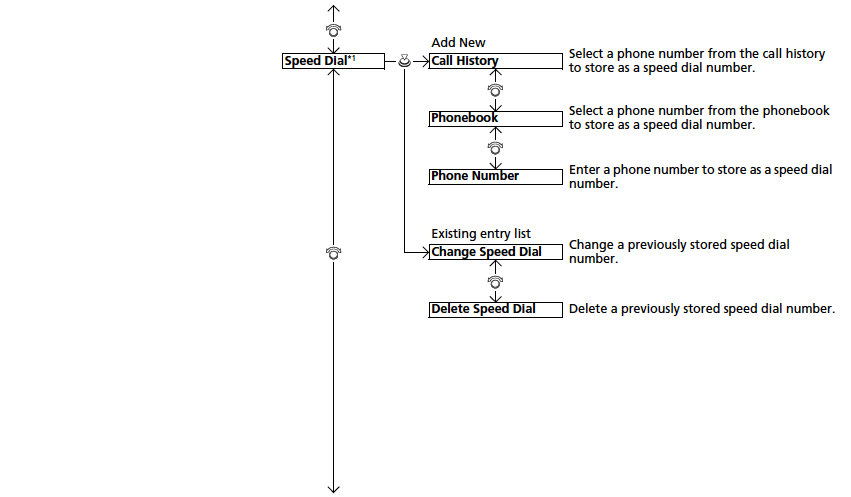

Speed Dial

Up to 20 speed dial numbers can be stored per phone.

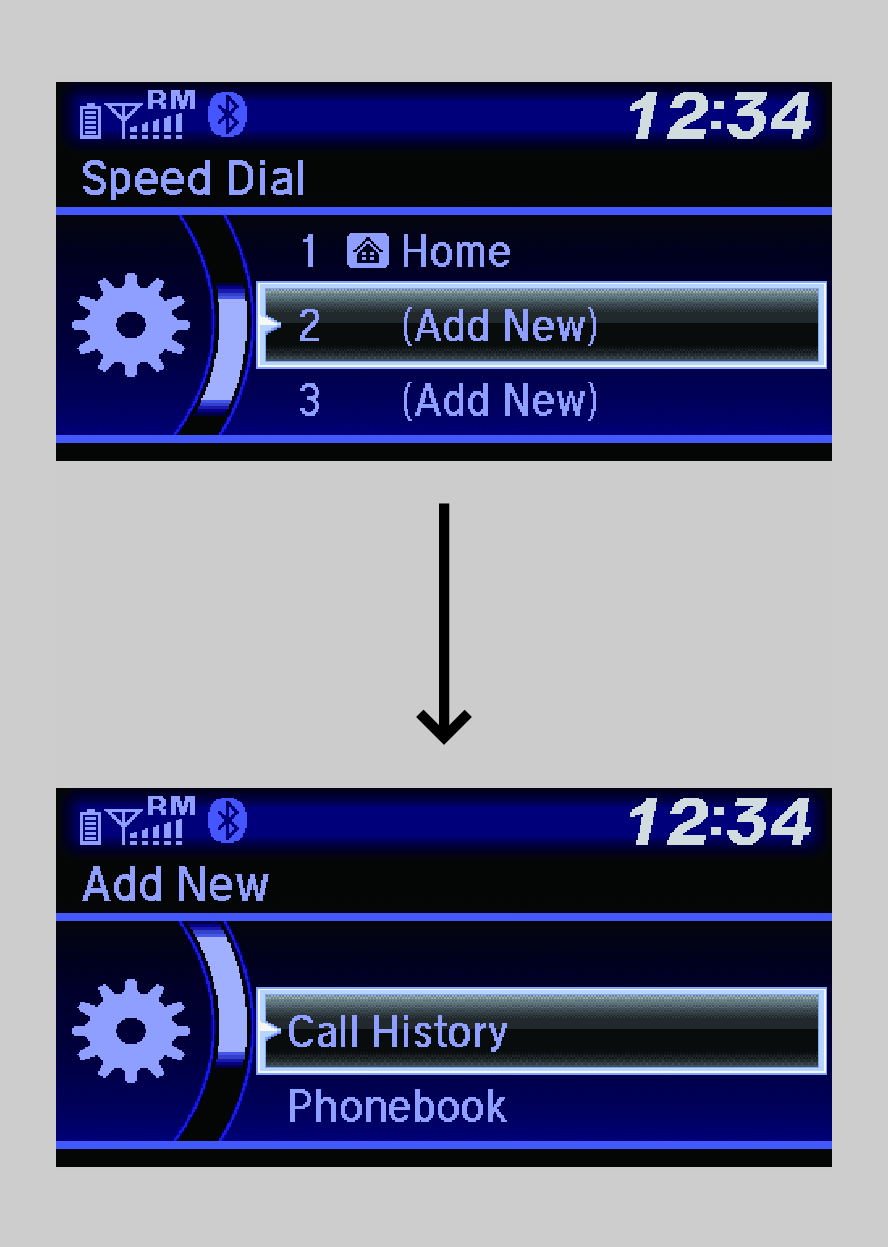

To store a speed dial number:
  1. Press the button or the button.
  2. Rotate to select Speed Dial, then press .
  3. Rotate to select Add New, then press .
  4. Rotate to select a place to choose a number from, then press .From Call History:
    • Select a number from the call history.
    From Phonebook:
    • Select a number from the connected cell phone’s imported phonebook.
    From Phone Number:
    • Input the number manually.

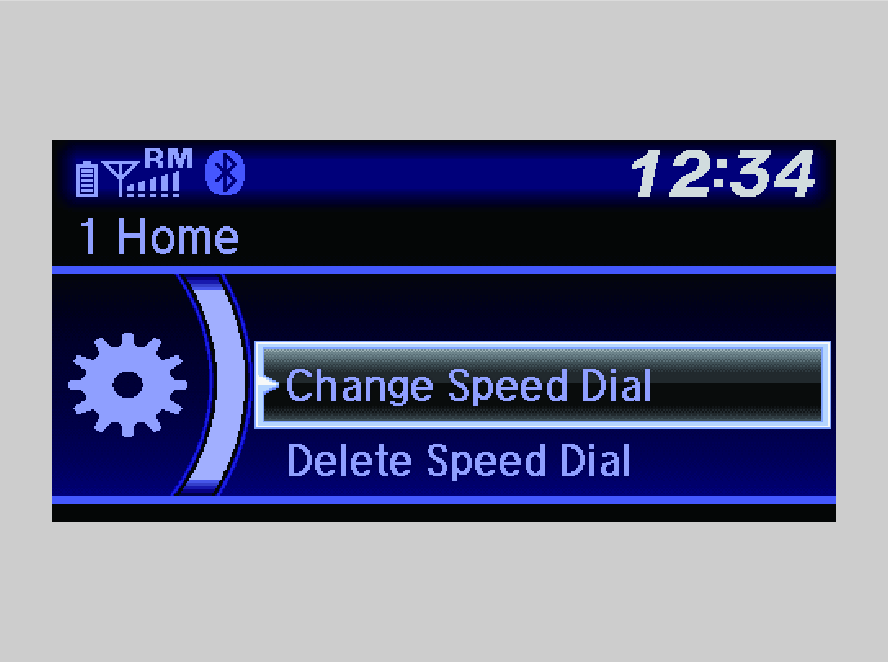

To edit a speed dial

  1. Press the button or the button.
  2. Rotate to select Phone Setup, then press .
  3. Rotate to select Speed Dial, then press .
  4. Select an existing speed dial entry.
  5. Rotate to select Change Speed Dial, then press .
  6. Select a new speed dial number, then press .

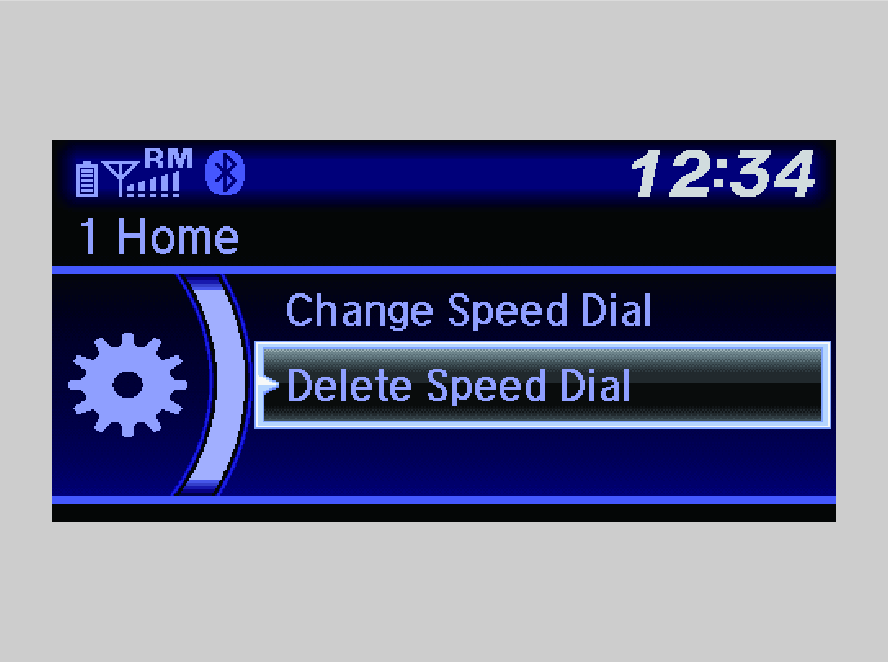

To delete a speed dial number

  1. Press the button or the button.
  2. Rotate to select Phone Setup, then press .
  3. Rotate to select Speed Dial, then press .
  4. Select an existing speed dial entry.
  5. Rotate to select Delete Speed Dial, then press .
    • A confirmation message appears on the screen. Rotate to select Yes, then press .
Detail

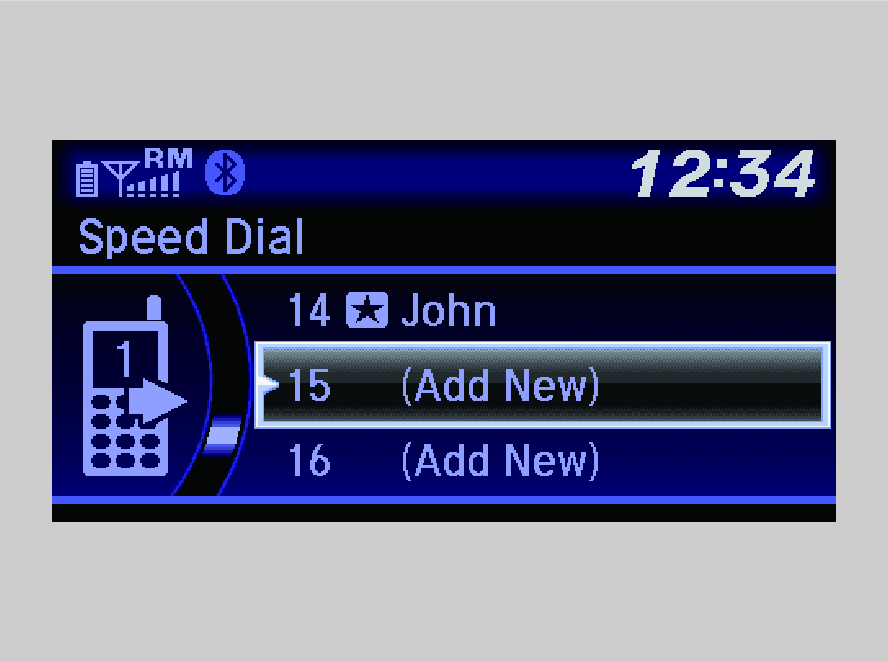

You can use the audio preset buttons during a call to store a speed dial number:
  1. Press and hold the desired audio preset button during a call.
  2. The contact information for the active call will be stored for the corresponding speed dial.

Making a Call

You can make calls by inputting any phone number, or by using the imported phonebook, call history, speed dial entries, or redial.

Detail
The maximum range between your phone and vehicles is 10 metres.

Once a call is connected, you can hear the voice of the person you are calling through the audio speakers.

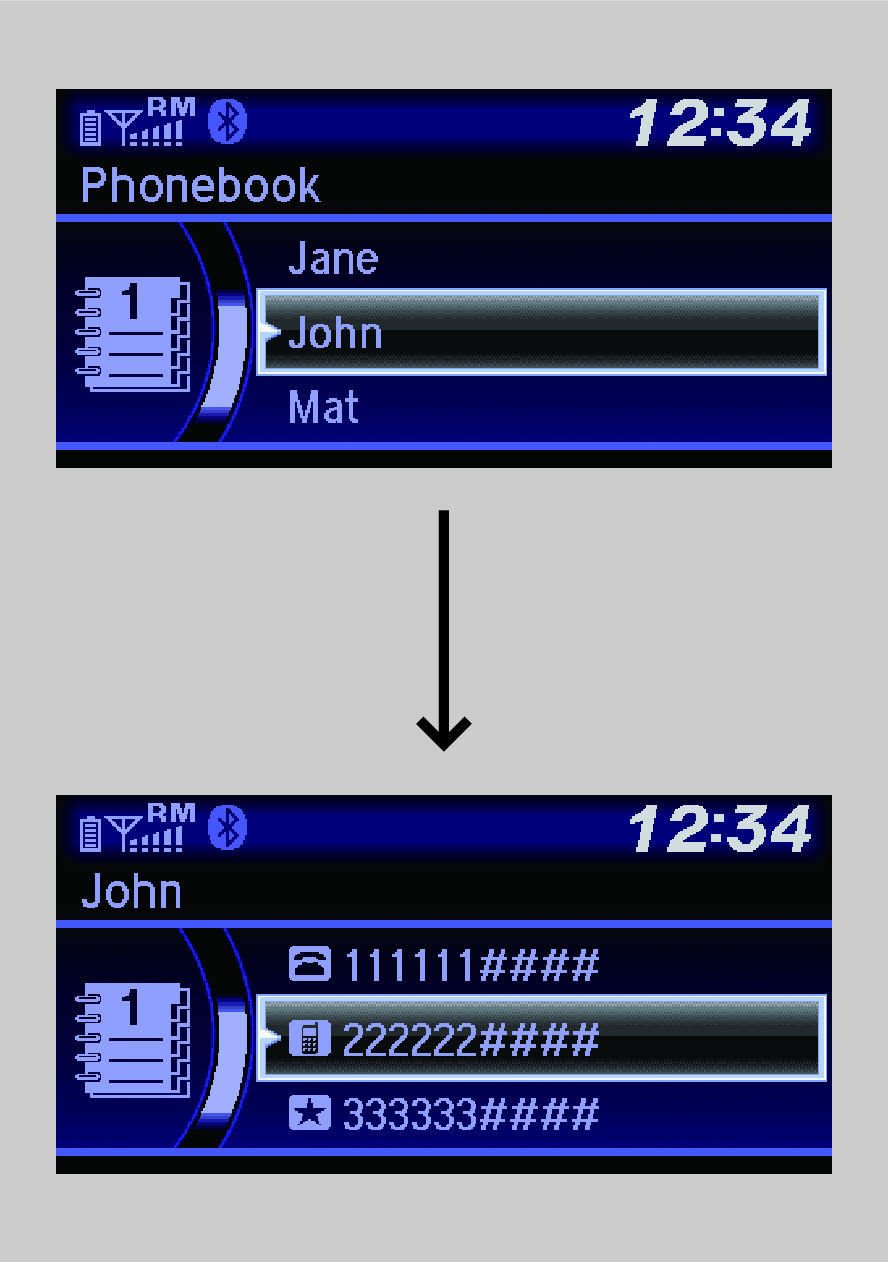

To make a call using the imported phonebook

When your phone is paired, the contents of its phonebook are automatically imported to the system.

  1. Press the button or the button.
  2. Rotate to select PhoneBook, then press .
  3. The phonebook is stored alphabetically. Rotate to select the initial, then press .
  4. Rotate to select a name, then press .
  5. Rotate to select a number, then press .
    • Dialing starts automatically.
Detail
This function is disabled while the vehicle is moving.

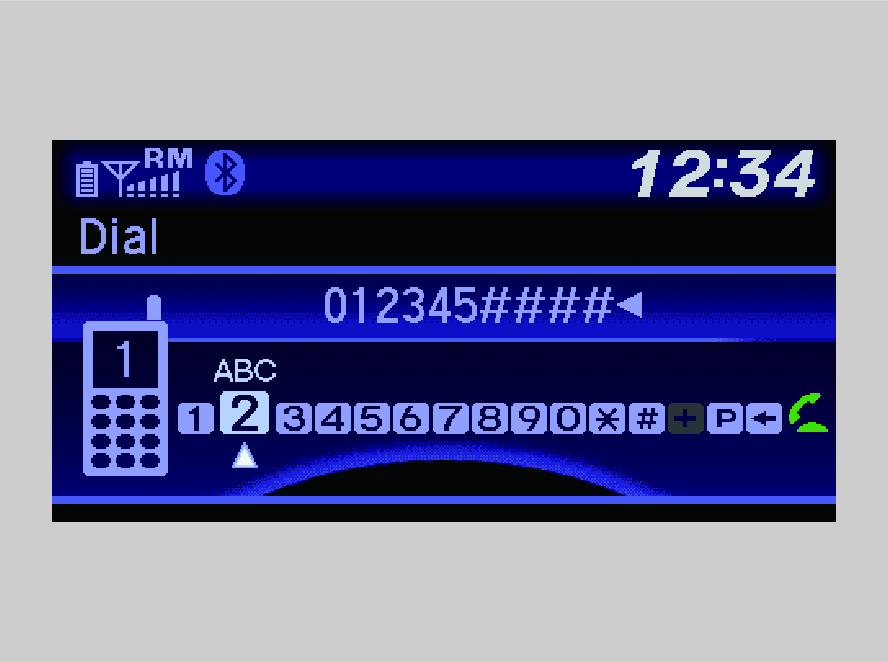

To make a call using a phone number

  1. Press the button or the button.
  2. Rotate to select Dial, then press .
  3. Rotate to select a number, then press .
  4. Rotate to select , then press .
    • Dialing starts automatically.
Detail
This function is disabled while the vehicle is moving.

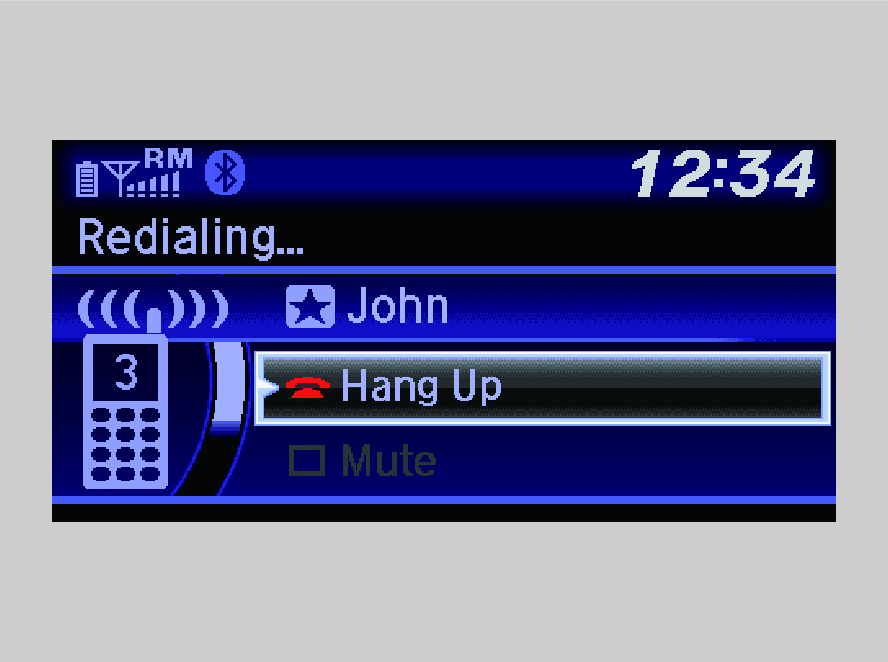

To make a call using redial

  1. Press the button or the button.
  2. Rotate to select Redial, then press .
    • Dialing starts automatically.
Detail
Press and hold the button to redial the last number dialed in your phone’s call history.

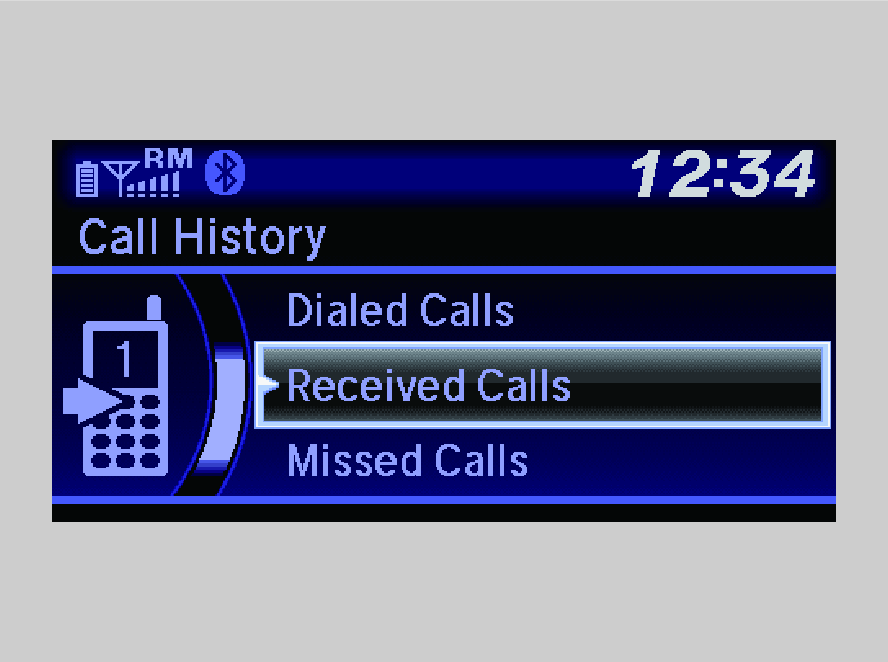

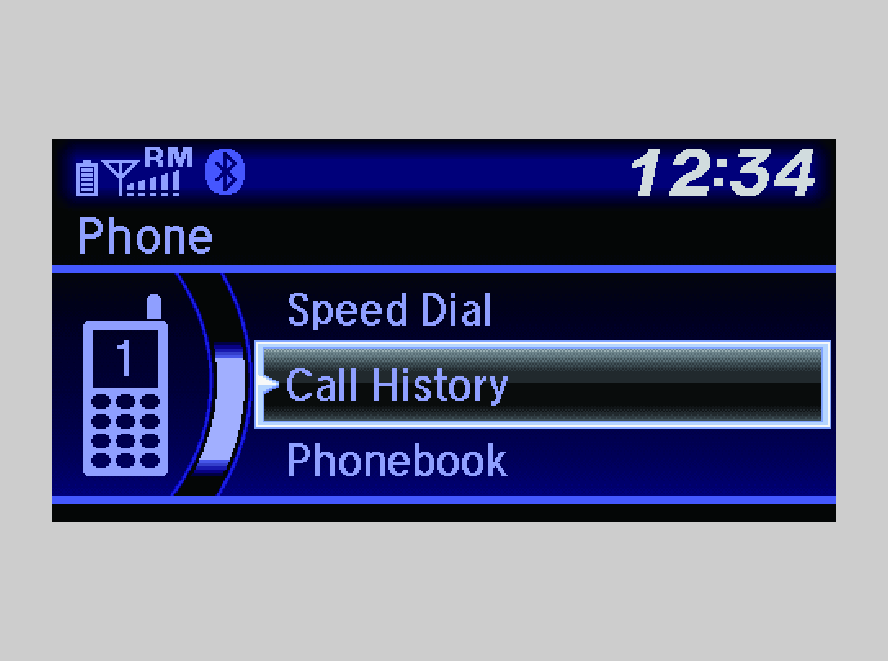

To make a call using the call history

Call history is stored by Dialed Calls, Received Calls, and Missed Calls.

  1. Press the button or the button.
  2. Rotate to select Call History, then press .
  3. Rotate to select Dialed Calls, Received Calls, or Missed Calls, then press .
  4. Rotate to select a number, then press .
    • Dialing starts automatically.
Detail
The call history appears only when a phone is connected to the system, and displays the last 20 dialed, received, or missed calls.

To make a call using a speed dial entry

  1. Press the button or the button.
  2. Rotate to select Speed Dial, then press .
  3. Rotate to select a number, then press .
    • Dialing starts automatically.
Honda Jazz Audio System Settings
Detail
On the Phone screen, the first six speed dials on the list can be directly selected by pressing the corresponding audio preset buttons (1-6).

Receiving a Call

When there is an incoming call, an audible notification sounds and the Incoming Call screen appears.
Press the button to answer the call.
Press the button to decline or end the call.
Detail
Call Waiting
Press the button to put the current call on hold to answer the incoming call.
Press the button again to return to the current call.
Select Ignore to ignore the incoming call if you do not want to answer it.
Press the button if you want to hang up the current call.

You can select the icons on the audio/information screen instead of the and buttons. Rotate to select the icon, then press .

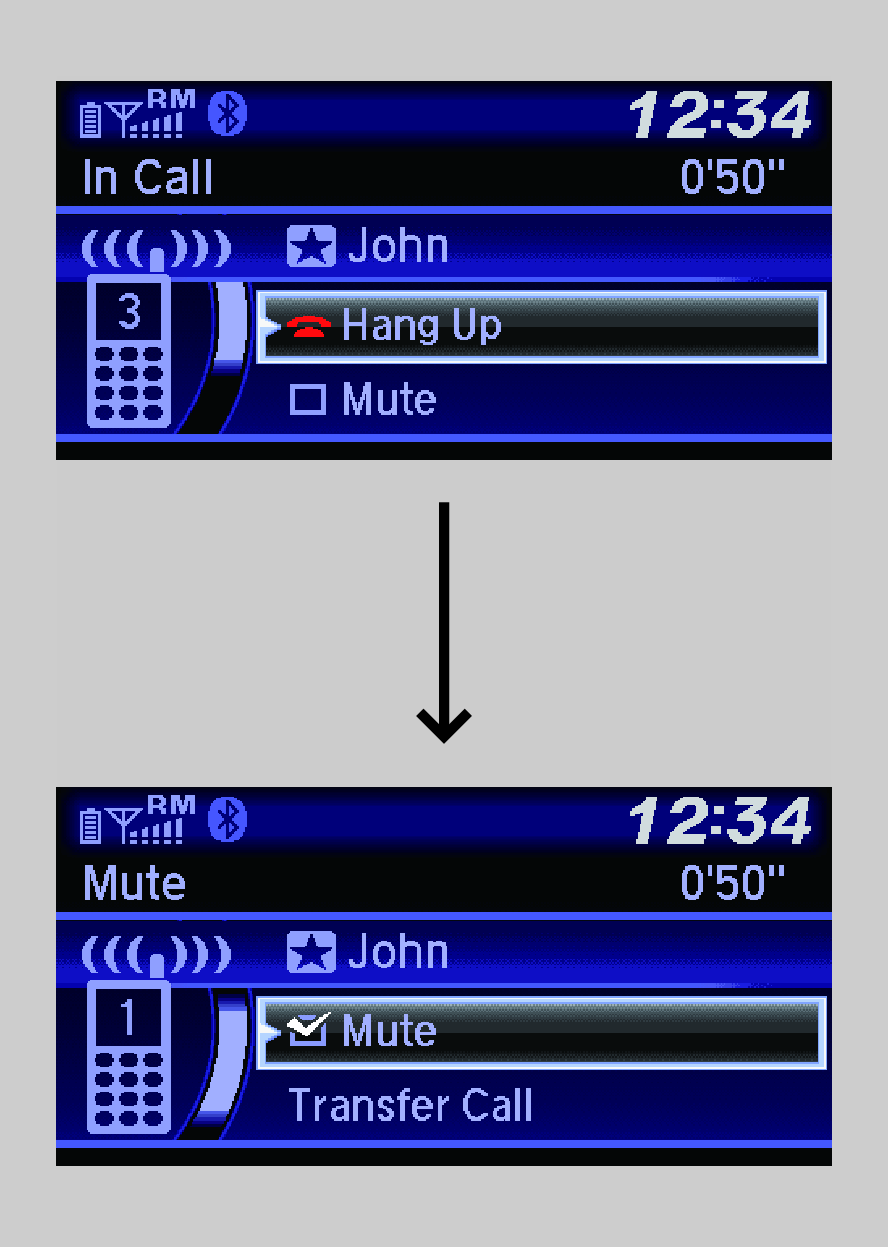

Options During a Call

The following options are available during a call.
Swap Call: Put the current call on hold to answer the incoming call.
Mute: Mute your voice.
Transfer Call: Transfer a call from the system to your phone.
Dial Tones: Send numbers during a call. This is useful when you call a menu-driven phone system.
  1. To view the available options, press the button.
  2. Rotate to select the option, then press .
    • The check box is checked when Mute is selected. Select Mute again to turn it off.
Detail
Dial Tones: Available on some phones.
