Changing the Rear Wiper Blade Rubber*
-

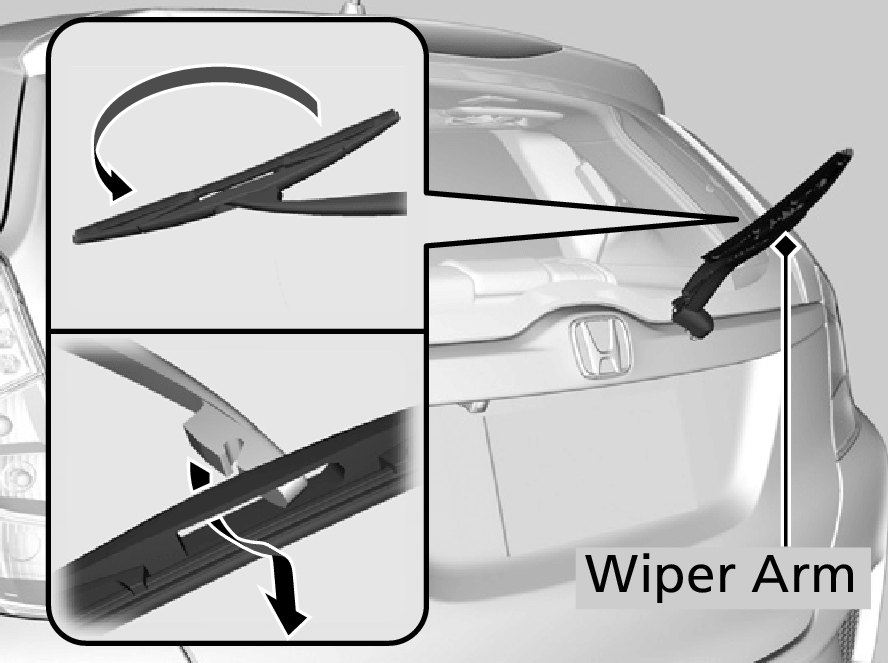

- Raise the wiper arm off.
- Pivot up the bottom end of the wiper blade until it comes off from the wiper arm.
-

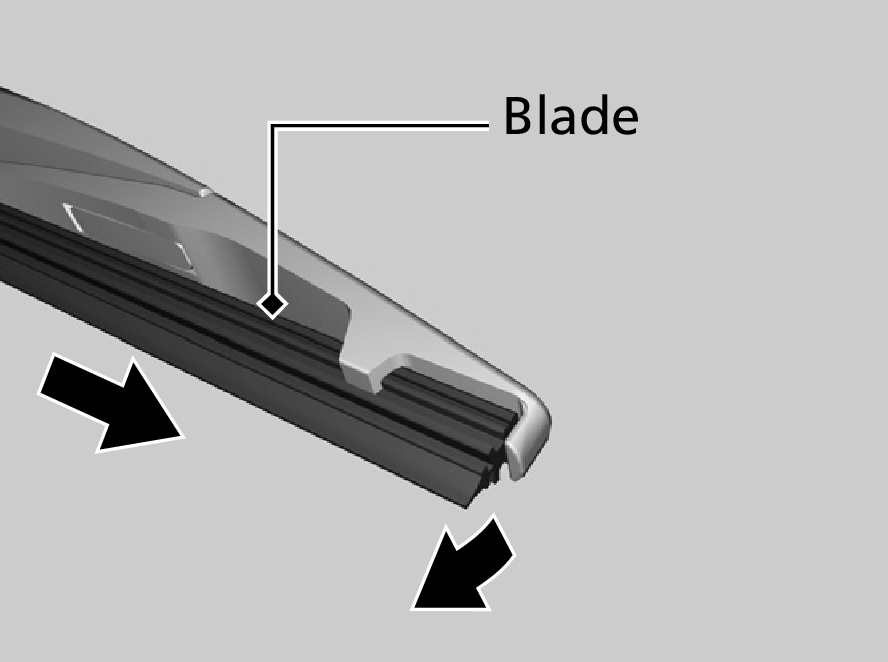

- Slide the wiper blade out from the end with the indent.
-

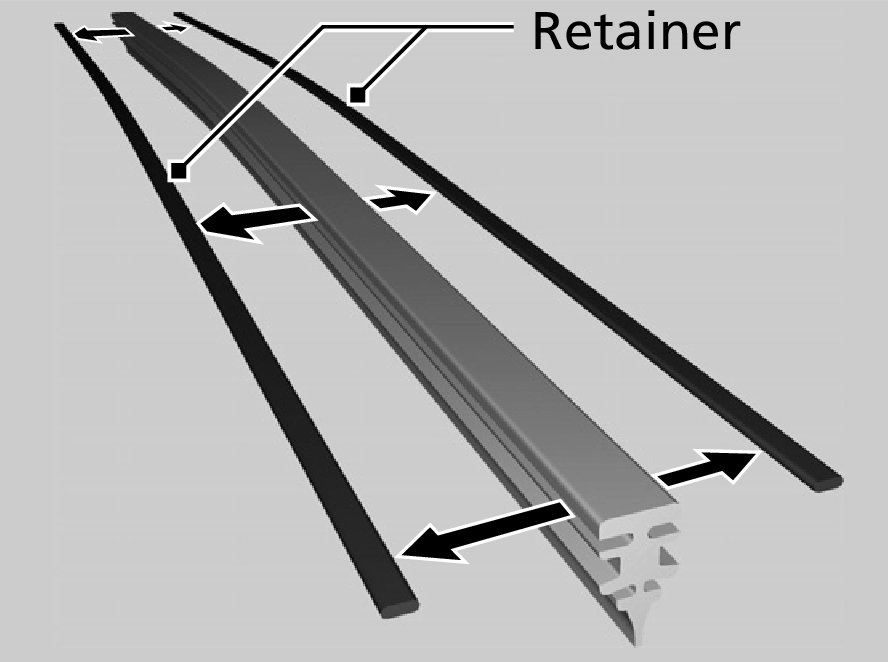

- Remove the retainers from the rubber blade that has been removed, and mount to a new rubber blade.
-

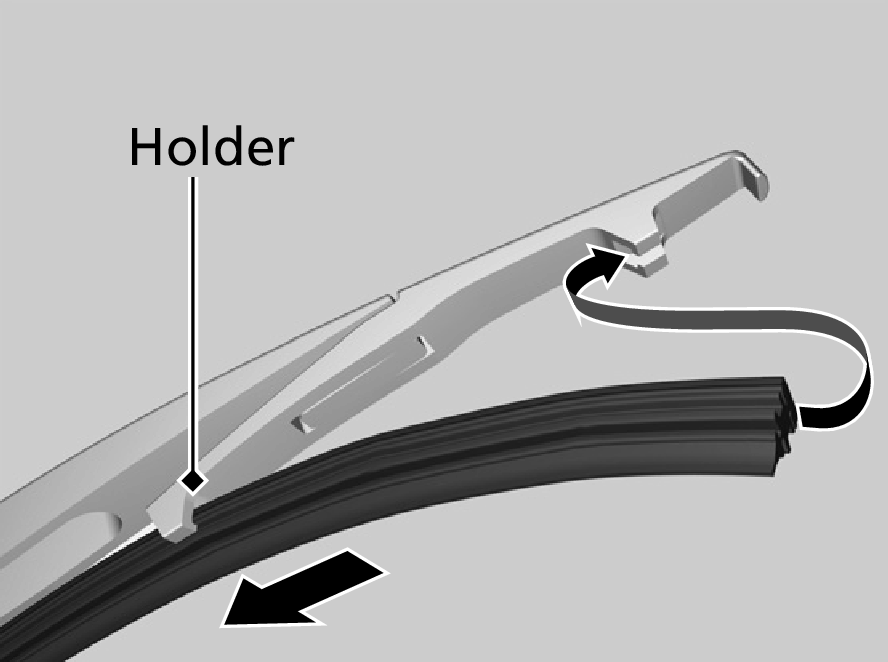

- Slide the wiper blade onto the holder.
- Make sure it is engaged correctly, then install the wiper blade assembly onto the wiper arm.
- Slide the wiper blade onto the holder.
- Detail
-
NOTICE
Avoid dropping the wiper blade; it may damage the rear window.
* Not available on all models
