Changing the Front Wiper Blade Rubber
-
- Lift the driver side wiper arm first, then the passenger side.
-
- Push the lock tab in, then slide the blade from the wiper arm.
-

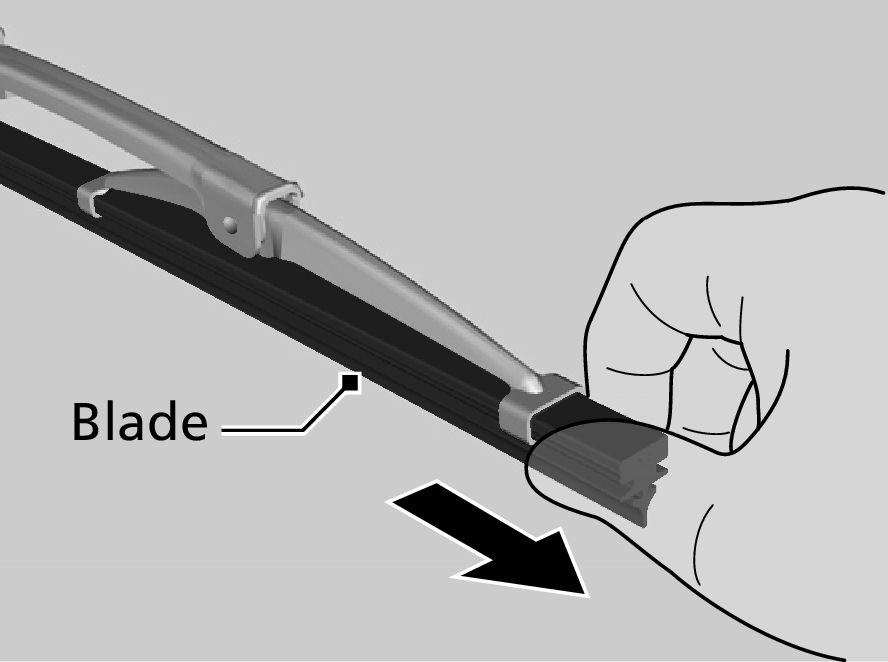

- Slide the wiper blade out from its holder by pulling the tabbed end out.
-

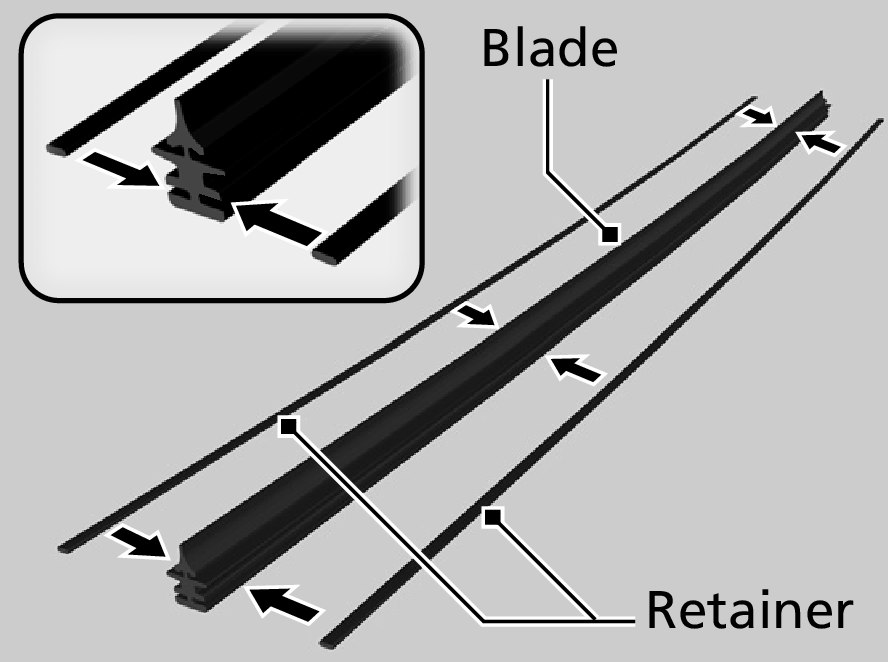

- Remove the retainers from the rubber blade that has been removed, and mount to a new rubber blade.
- Correctly align the rubber protrusion and the retainer grooves.
- Slide the new wiper blade onto the holder from the bottom end.
- The tab on the holder should fit in the indent of the wiper blade.
- Slide the wiper blade onto the wiper arm securely.
- Lower the passenger side wiper arm first, then the driver side.
- Remove the retainers from the rubber blade that has been removed, and mount to a new rubber blade.
- Detail
-
NOTICE
Avoid dropping the wiper arm; it may damage the windscreen.
