Wipers and Washers

Detail

NOTICE
Do not use the wipers when the windscreen is dry.
The windscreen will get scratched, or the rubber blades will get damaged.

NOTICE
In cold weather, the blades may freeze to the windscreen, becoming stuck.
Operating the wipers in this condition may damage the wipers. Use the demister to warm the windscreen, then turn the wipers on.


Turn the washers off if no washer fluid comes out.
The pump may get damaged.

The wiper motor is equipped with a breaker that may stop motor operation temporarily to prevent an overload. Wiper operation will return to normal within a few minutes, once the circuit has returned to normal.

If the wipers stop operating due to any obstacle such as the build-up of snow, park the vehicle in a safe place.

Rotate the wiper switch to OFF, and turn the ignition switch to ACCESSORY I or LOCK 0*1, then remove the obstacle.

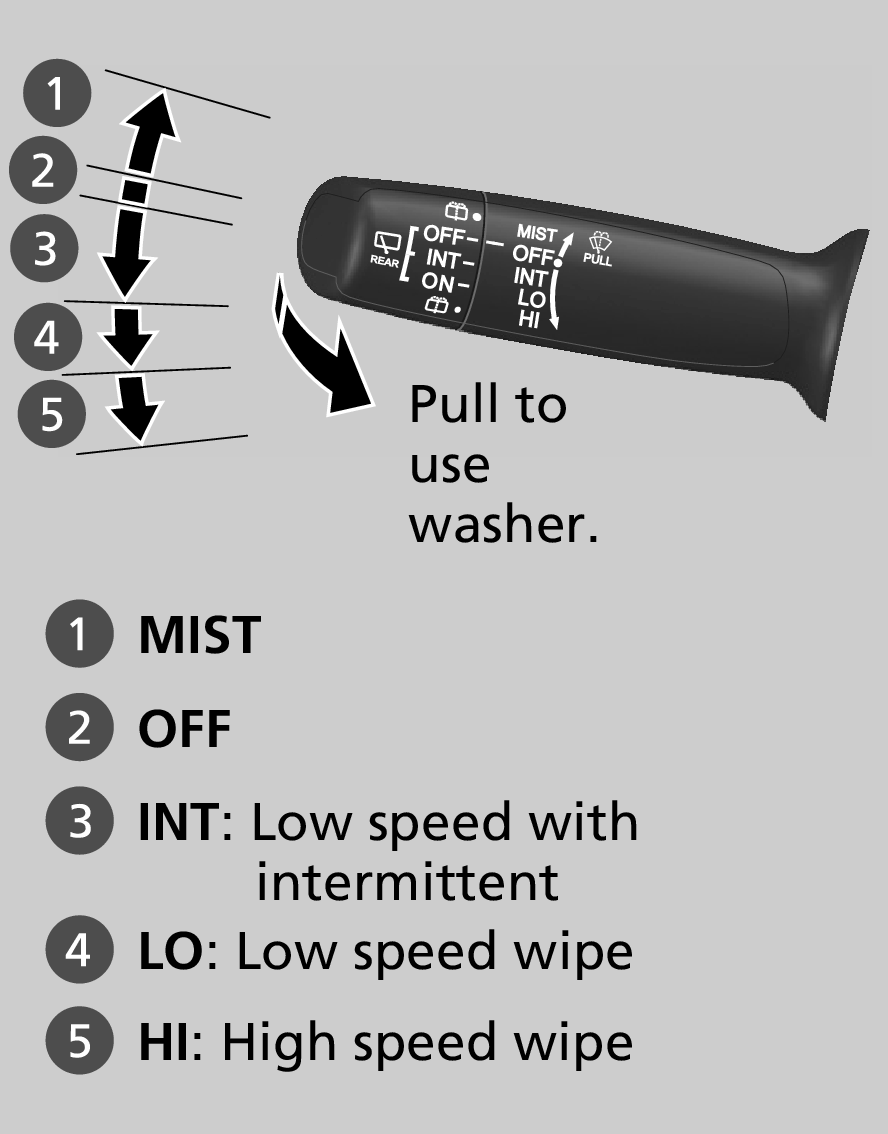

Windshield Wiper/Washer

The windscreen wipers and washers can be used when the ignition switch is in ON II*1.

MIST

The wipers run at high speed until you release the lever.

Wiper switch (OFF, INT, LO, HI)

Change the wiper switch setting according to the amount of rain.

Washer

Sprays while you pull the lever toward you.When you release the lever for more than one second, the spray stops, the wipers sweep two or three more times to clear the windshield, then stop.

*1 : Models with the keyless access system have an ENGINE START/STOP button instead of an ignition switch.

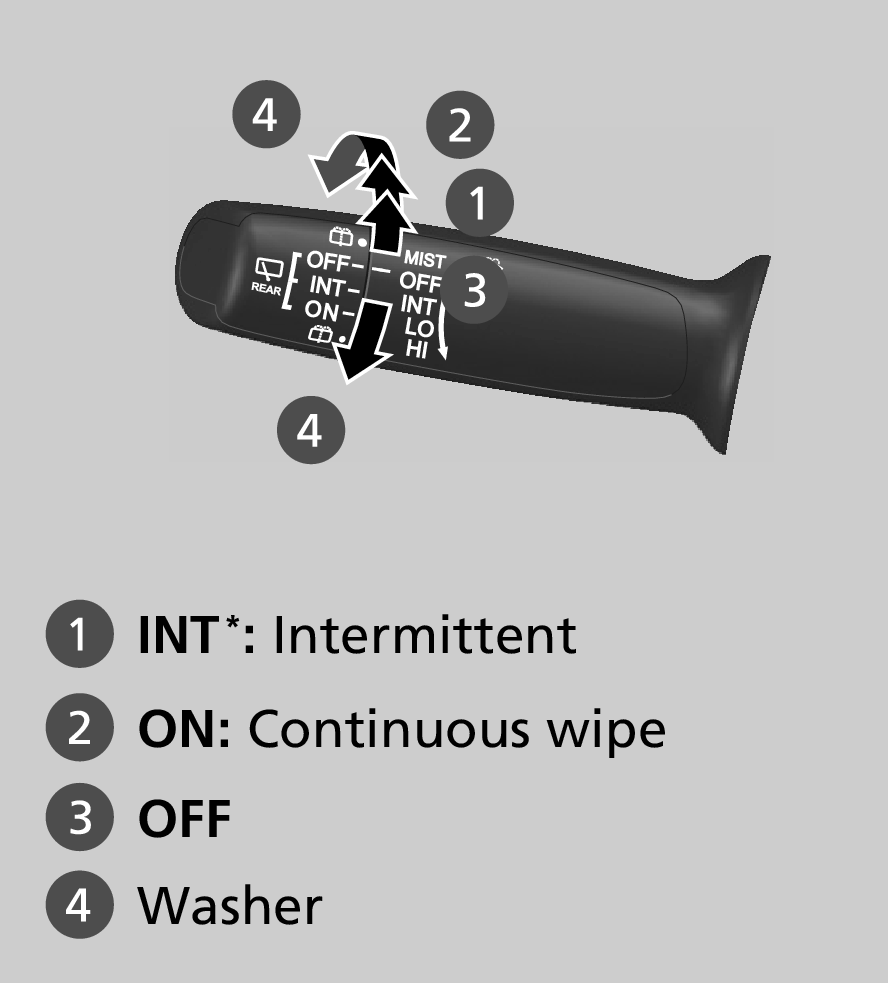

Rear Wiper/Washer*

The rear wiper and washers can be used when the ignition switch is in ON II*1.

Wiper switch (OFF, INT*, ON)

Rear wiper without INT

The wiper operates continuously.

Rear wiper with INT

Change the wiper switch setting according to the amount of rain.

Washer ()

Sprays while you rotate the switch to this position.

Rear wiper with INT

Hold it to activate the wiper and to spray the washer. Once released, it stops operating after a few more sweeps.

Honda Jazz Controls

Operating in reverse*

When you shift the transmission to R with the windscreen wipers activated, the rear wiper operates automatically as follows even if its switch is off.

Front Wiper Position
Rear Wiper Operation
INT (Intermittent)
Intermittent
LO (Low speed wipe)
HI (High speed wipe)
Continuous

*1 : Models with the keyless access system have an ENGINE START/STOP button instead of an ignition switch.

* Not available on all models
