Multi-Information Display*

The multi-information display shows the fuel gauge, odometer, trip meter, outside temperature*, and other gauges.

It also displays important messages such as warnings and other helpful information.

Switching the Display

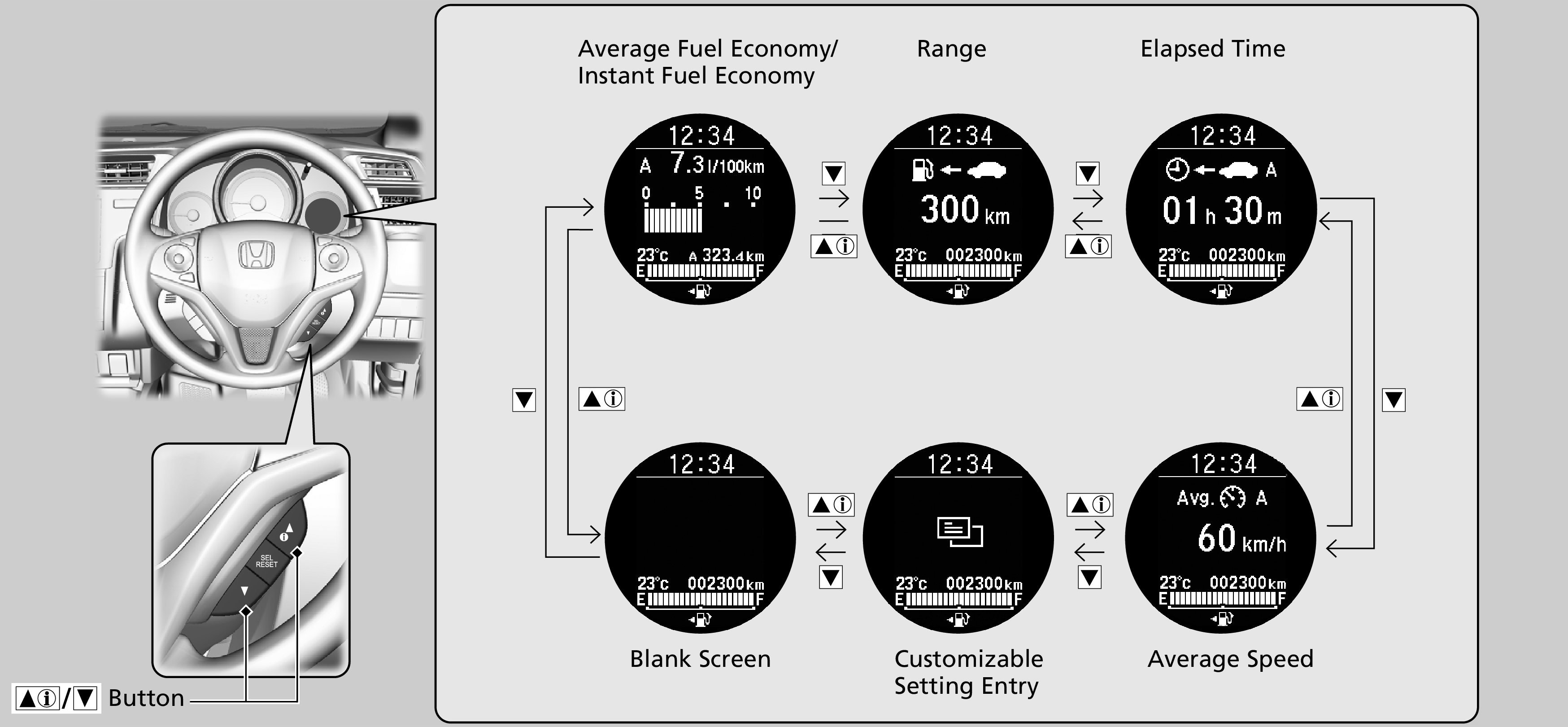

Main displays

Press the ../img/inline/063_up%20info_down.png (information) button to change the display.

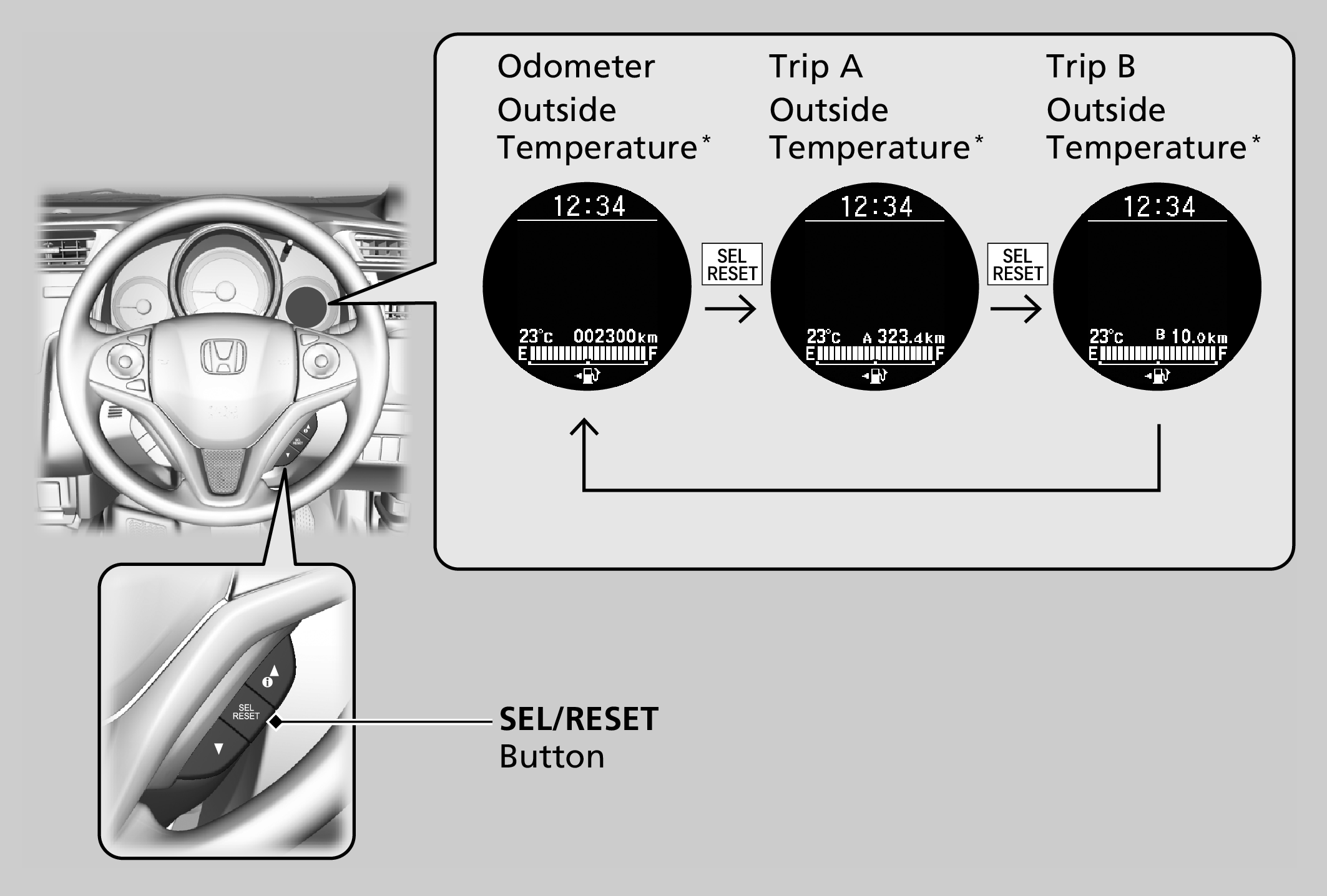

Lower displays

Press the SEL/RESET button to change the display.

Odometer

Shows the total number of kilometres that your vehicle has accumulated.

Trip Meter

Shows the total number of kilometres driven since the last reset. Trip A and B can be used to measure two separate trips.

Detail: Switch between trip A and B by pressing the SEL/RESET button.

Resetting a trip meter

To reset a trip meter, display it, then press and hold the SEL/RESET button. The trip meter is reset to 0.0.

Average Fuel Economy

Shows the estimated average fuel economy of each trip meter in l/100 km. The display is updated at set intervals. When a trip meter is reset, the average fuel economy is also reset.

Detail: You can change when to reset the average fuel economy.
Customized Features

Range

Shows the estimated distance you can travel on the remaining fuel. This distance is estimated from the fuel economy of your previous trips.

Elapsed Time

Shows the time elapsed since trip A or trip B was reset.

Detail: You can change when to reset the elapsed time.
Customized Features

Average Speed

Shows the average speed in km/h since trip A or trip B was reset.

Detail: You can change when to reset the average speed.
Customized Features

Instant Fuel Economy

Shows the instant fuel economy as a bar graph in l/100 km.

Outside Temperature*

Shows the outside temperature in Celsius.If the outside temperature has been below 3°C at the time you turn the ignition switch to ON II, the outside temperature indicator blinks for 10 seconds.

Detail: The temperature sensor is in the front bumper.
Road heat and exhaust from another vehicle can affect the temperature reading when your vehicle speed is less than 30 km/h.

It may take several minutes for the display to be updated after the temperature reading has stabilized.

Use the multi-information display's customized features to correct the temperature.
Customized Features

Adjusting the outside temperature display

Adjust the temperature reading up to ±3°C if the temperature reading seems incorrect.

Fuel Gauge

Displays the amount of fuel left in the fuel tank.

Detail: NOTICE
You should refuel when the reading approaches E.
Running out of fuel can cause the engine to misfire, damaging the catalytic converter.

The actual amount of remaining fuel may differ from the fuel gauge reading.

Customized Features

Use the multi-information display to customize certain features.

Detail: To customize other features, press the button.
List of customizable options

Example of customization settings

When you customize settings:
Continuously variable transmission models
Shift to P.
Manual transmission models
Set the parking brake.

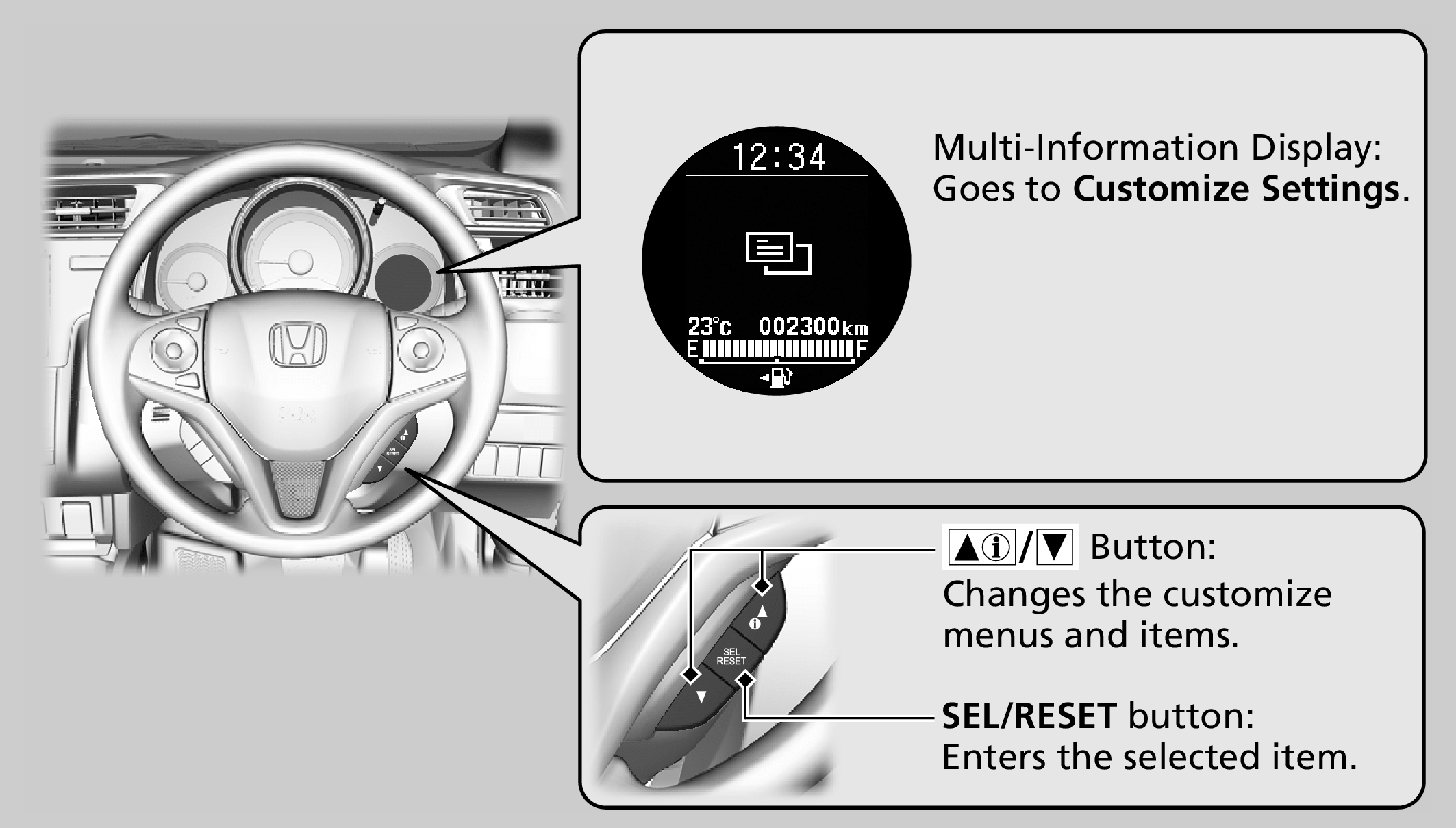

How to customize

Select the ../img/inline/116_mid%20cust.png

(Customize Settings) screen by pressing the ../img/inline/063_up%20info_down.png

button while the ignition switch is in ON II, the vehicle is at a complete stop, and the shift lever is in P (continuously variable transmission), and the parking brake is set (manual transmission). Press the SEL/RESET button to enter the customizing mode.

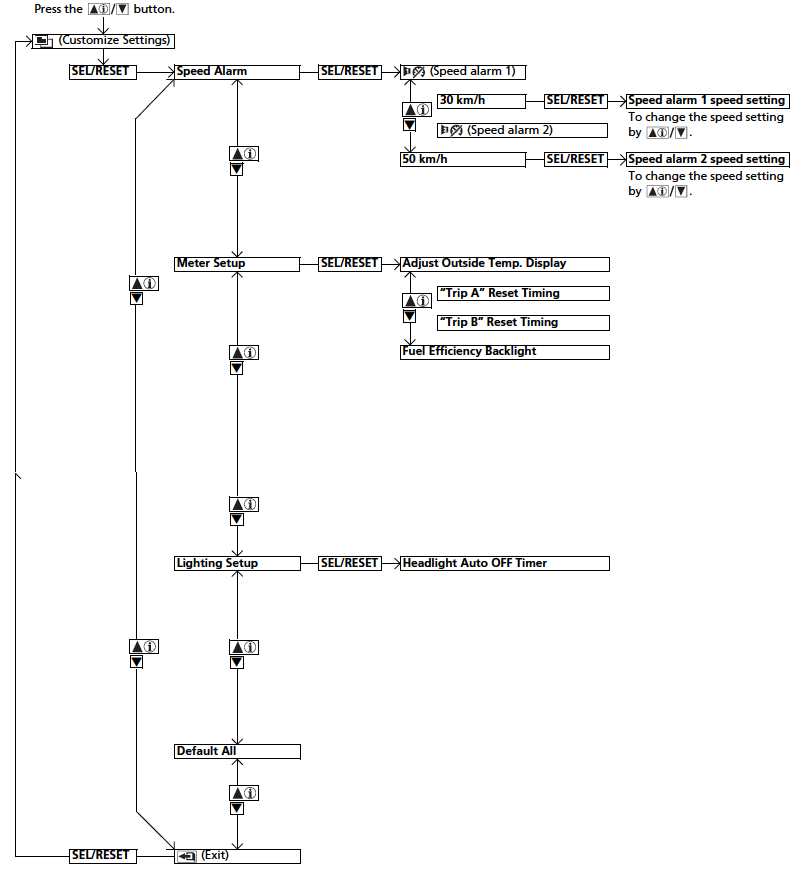

Customization flow

List of customizable options

Setup Group	Customizable Features	Description	Selectable Settings
Speed Alarm	Speed alarm setting^*2	Sets the speed alarm on and changes the speed alarm setting.	Speed alarm 1On ()/Off ()^*1 [30 km/h]
			Speed alarm 1 speed setting over 5 km/h with 5 km/h steps
			Speed alarm 2On ()/Off ()^*1 [50 km/h]
			Speed alarm 2 speed setting over 5 km/h with 5 km/h steps

*1 : Default Setting

*2 : You can turn the speed alarm on or off while driving.

Setup Group	Customizable Features	Description	Selectable Settings
Meter Setup	Adjust Outside Temp. Display	Adjusts the temperature reading by a few degrees.	-3°C ~ ±0°C^1 ~ +3°C*
	“Trip A” Reset Timing	Changes the setting of how to reset trip meter A, average fuel economy A, average speed A, and elapsed time A.	When Refueled/When Ignition Is Turned Off/Manual Reset^*1
	“Trip B” Reset Timing	Changes the setting of how to reset trip meter B, average fuel economy B, average speed B, and elapsed time B.	When Refueled/When Ignition Is Turned Off/Manual Reset^*1
	Fuel Efficiency Backlight	Turns the ambient meter feature on and off.	On^1/Off*
Lighting Setup	Headlight Auto Off Time	Changes the length of time the exterior lights stay on after you close the driver’s door.	60sec/30sec/15sec^1/0sec*
Default All	—	Cancels/Resets all the customized settings as default.	Cancel/Ok

*1 : Default Setting

Example of customization settings

The steps for changing the “Trip A” Reset Timing setting to When Refueled are shown below. The default setting for “Trip A” Reset Timing is Manual Reset.

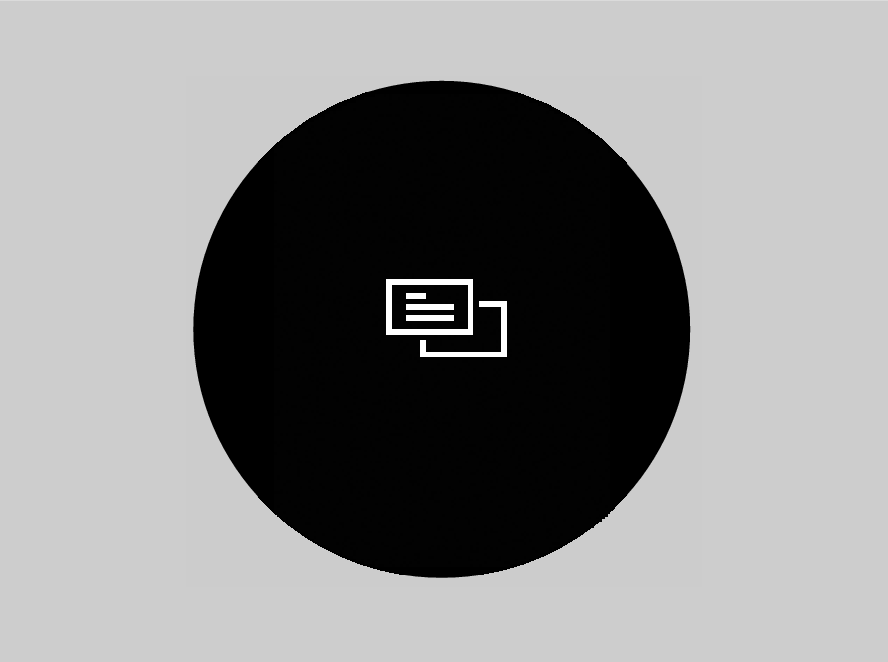

Press the button until (customize settings) appears on the display, then press the SEL/RESET button.

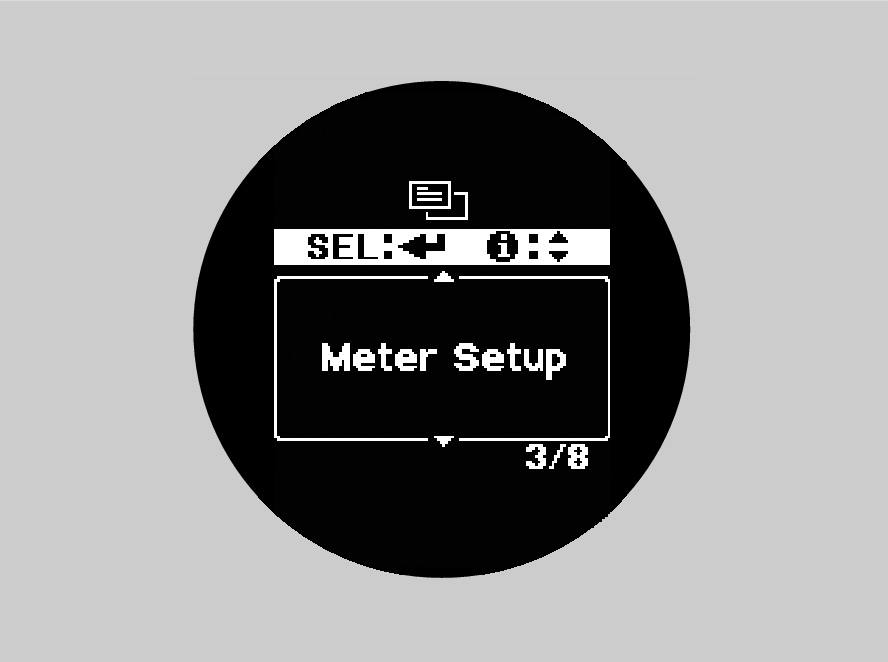

Press the button until Meter Setup appears on the display.

Press the SEL/RESET button.

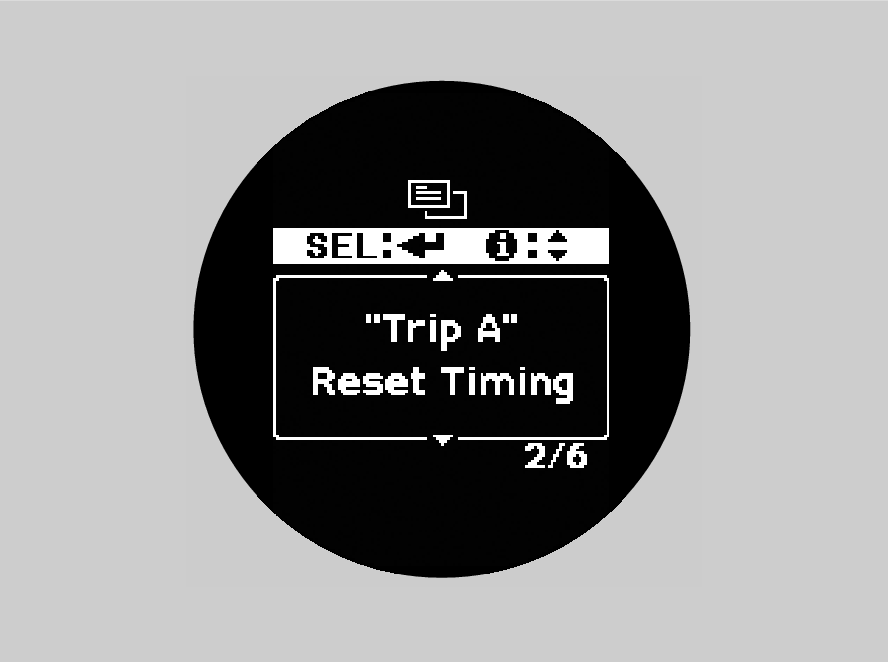

Press the button until “Trip A” Reset Timing appears on the display, then press the SEL/RESET button.

The display switches to the customization setup screen, where you can select When Refueled, When Ignition Is Turned Off, Manual Reset, or (Exit).

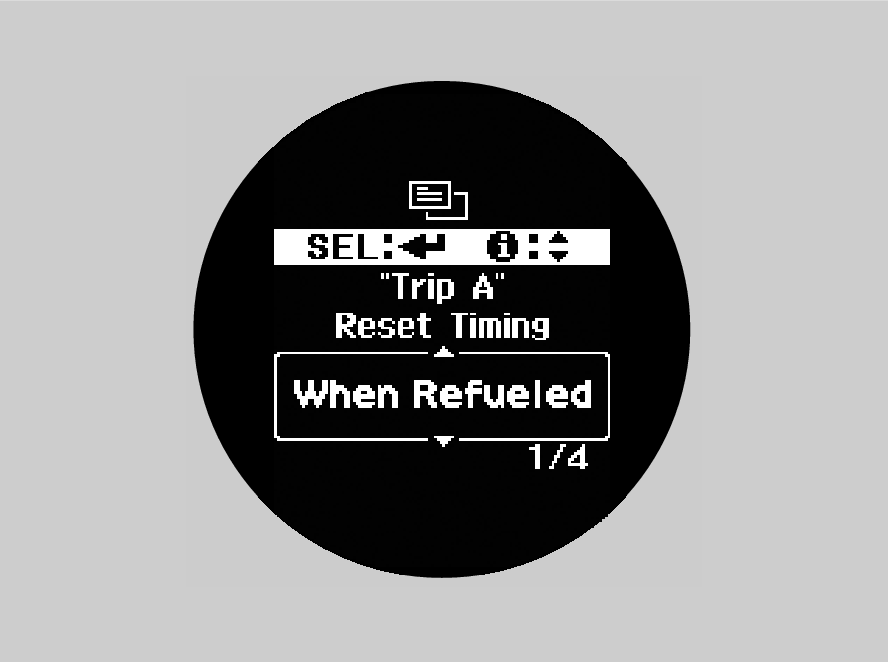

Press the button and select When Refueled, then press the SEL/RESET button.

The When Refueled Setup screen appears, then the display returns to the customization menu screen.

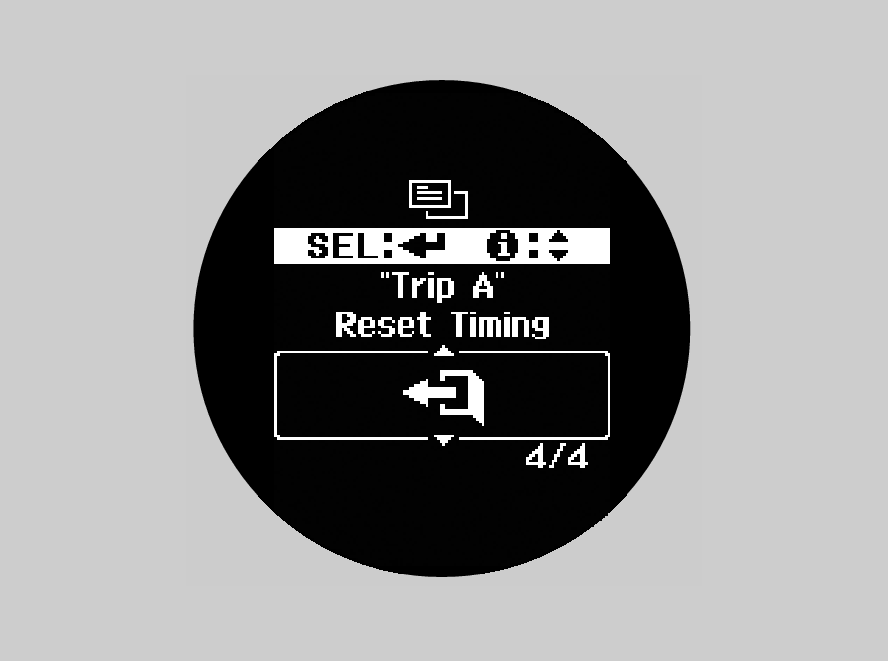

Press the button until (Exit) appears on the display, then press the SEL/RESET button.

Repeat Step 6 until you return to the normal screen.

* Not available on all models
