Audio System Basic Operation

Models with colour audio system

To use the audio system function, the ignition switch must be in ACCESSORY I or ON II.

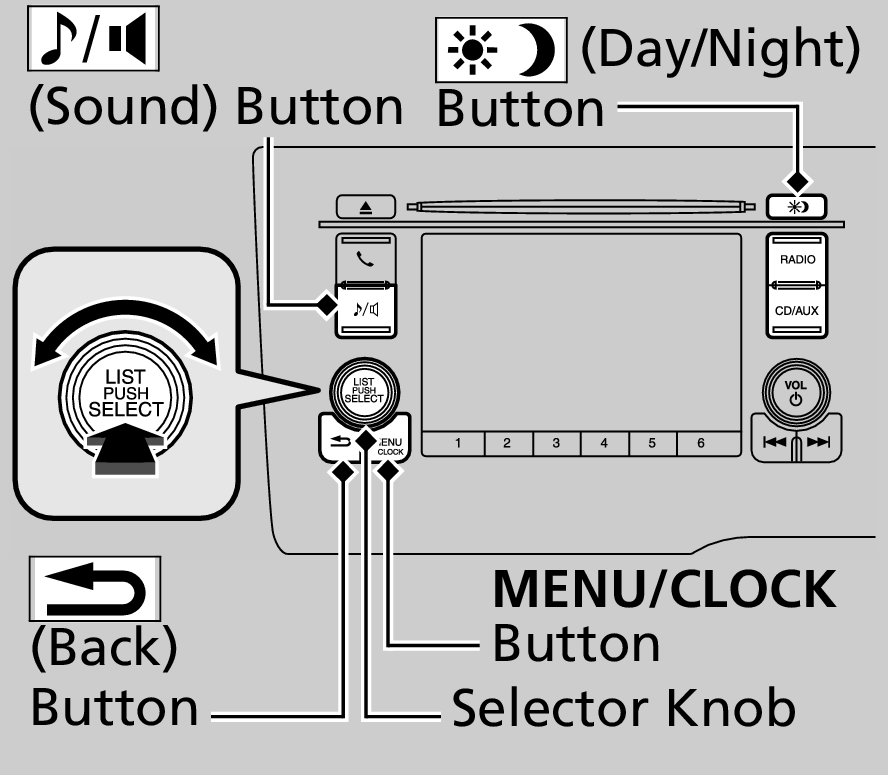

Use the selector knob or MENU/CLOCK button to access some audio functions.
Press to switch between the normal and extended display for some functions.
Selector knob:
Rotate left or right to scroll through the available choices. Press to set your selection.
Honda Jazz Audio System Controls

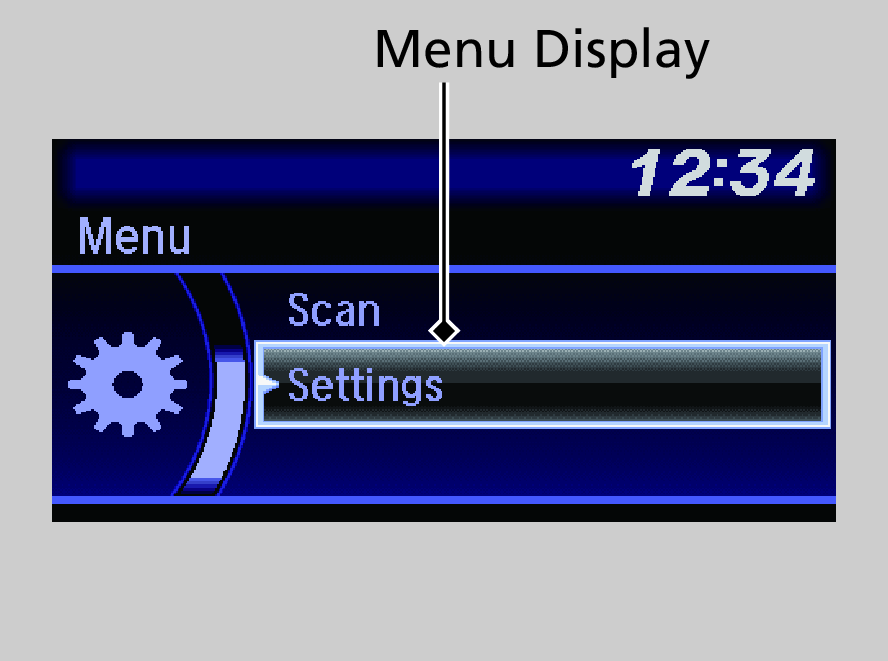

MENU/CLOCK button:
Press to select any mode.
The available mode includes the wallpaper, display, clock, language setup, and play modes. Play modes can be also selected from scan, random, repeat, and so on.
(Back) button: Press to go back to the previous display.
button: Press to select the sound setting mode.
button: Press to change the audio/information screen brightness.

Press , then adjust the brightness using .

  • Each time you press , the mode switches between the daytime mode, nighttime mode and OFF mode.

Detail
These indications are used to show how to operate the selector knob.
Rotate to select.
Press to enter.

Press the SOURCE, , , or button on the steering wheel to change any audio setting.

Audio Remote Controls*


Audio Menu Items

Adjust Clock

Wallpaper Setup

Display Setup

Scan(CD)Scan(AM/FM Radio)

Play Mode(USB Flash Drive)Play Mode(iPod)Play Mode(CD)

Bluetooth


One of the operating systems used in this unit is eCos.
For software license terms and conditions, visit their website (eCos license URL:
http://ecos.sourceware.org/license-overview)
For source code disclosure and other details regarding eCos, visit:
http://www.hondaopensource2.com
