Changing the Front Wiper Blade Rubber

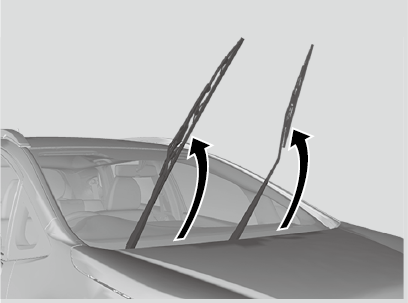

  1. Lift the driver side wiper arm first, then the passenger side.

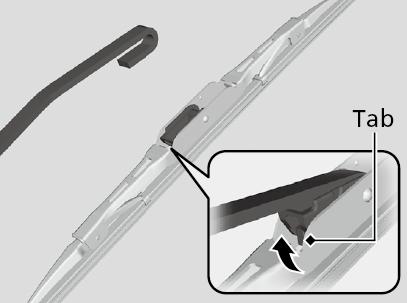

  1. Press and hold the tab, then slide the holder off the wiper arm.

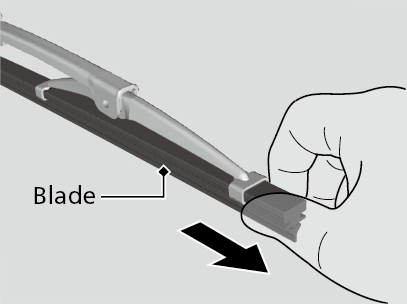

  1. Slide the wiper blade out of the holder by pulling the tabbed end out.

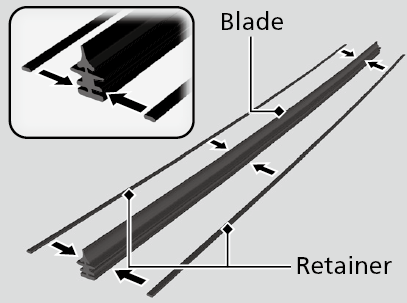

  1. Remove the retainers from the wiper blade that has been removed, and mount them to a new wiper blade.
    • Correctly align the wiper blade protrusion and the retainer grooves.
  2. Slide the new wiper blade onto the holder from the bottom end.
    • The tab on the holder should fit in the indent of the wiper blade.
  3. Slide the holder onto the wiper arm securely.
  4. Lower the passenger side wiper arm first, then the driver side.
Detail

NOTICE
Avoid dropping the wiper arm onto the windscreen, it may damage the wiper arm and/or the windscreen.
